Components [11/2015 - 12/2018]

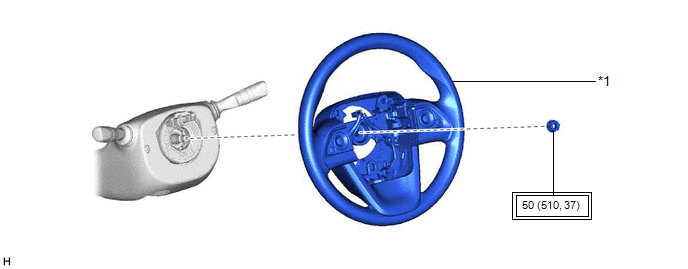

Fig 1: Steering Wheel Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	STEERING WHEEL ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf.cm, ft./lbf)	-	-

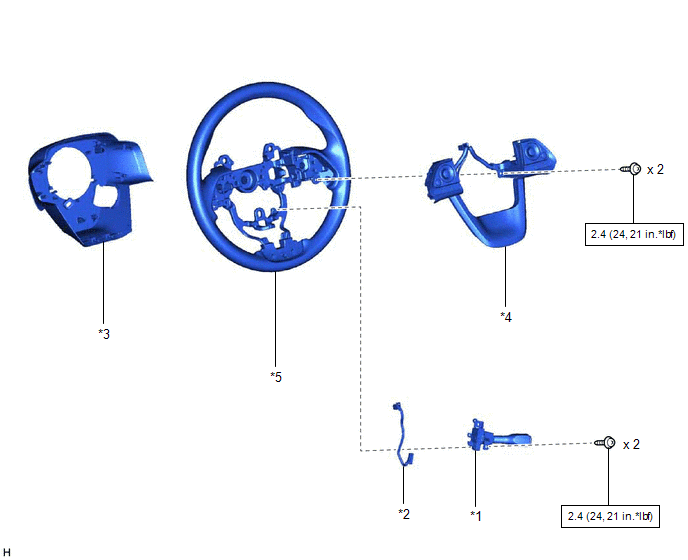

Fig 2: Steering Wheel Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	CRUISE CONTROL MAIN SWITCH	*2	CRUISE CONTROL SWITCH WIRE
*3	LOWER STEERING WHEEL BOSS COVER	*4	STEERING PAD SWITCH ASSEMBLY
*5	STEERING WHEEL SUB-ASSEMBLY	-	-
	N.m (kgf.cm, ft./lbf): Specified torque	-	-
