System Diagram [11/2015 - 11/2017]

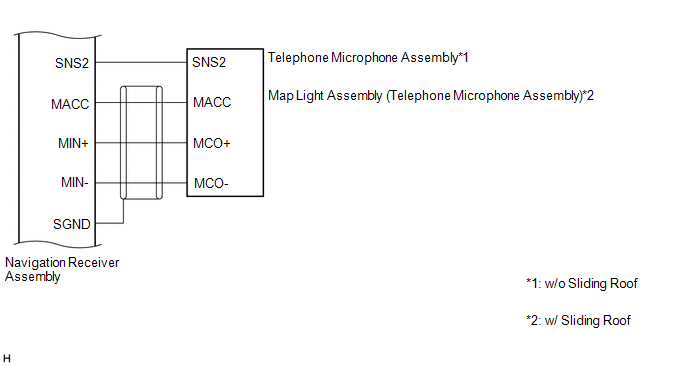

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

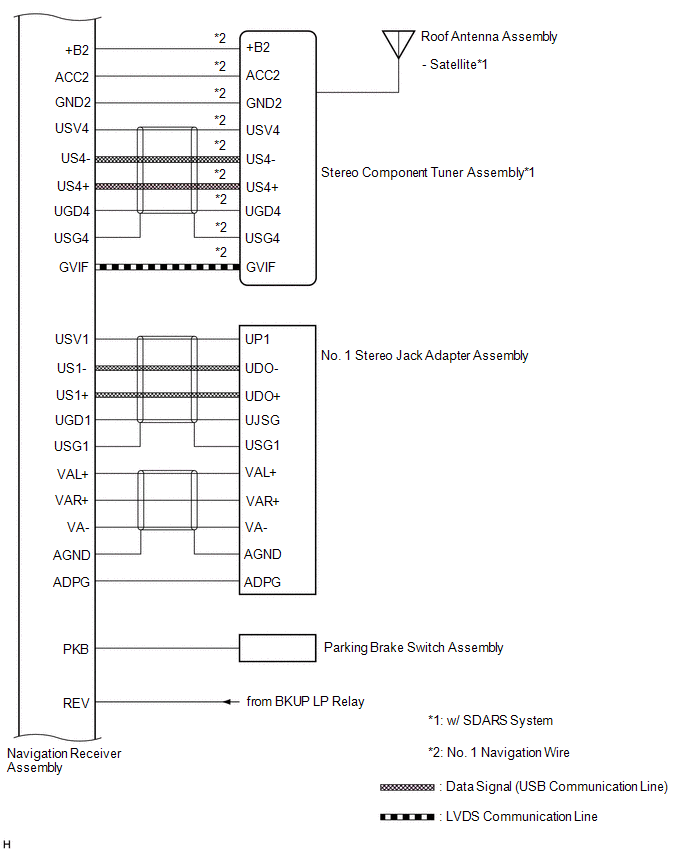

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

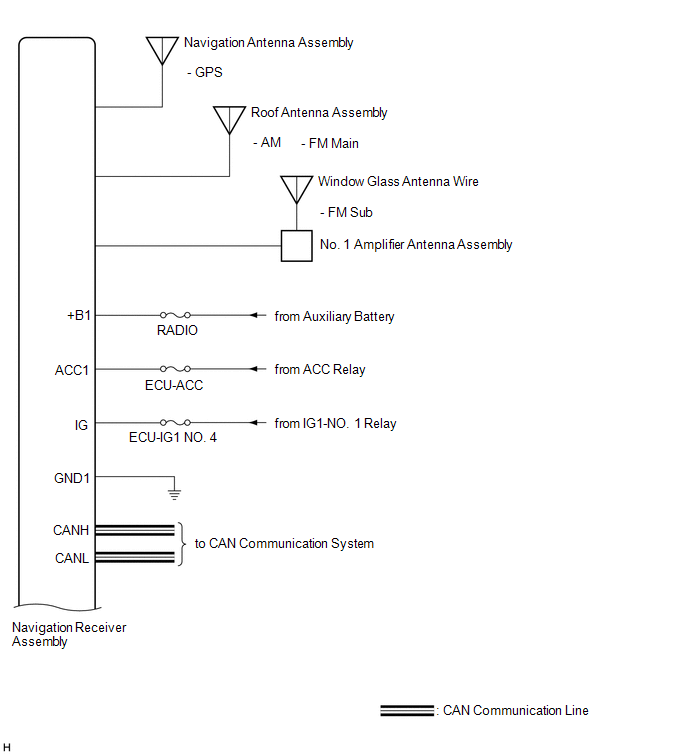

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

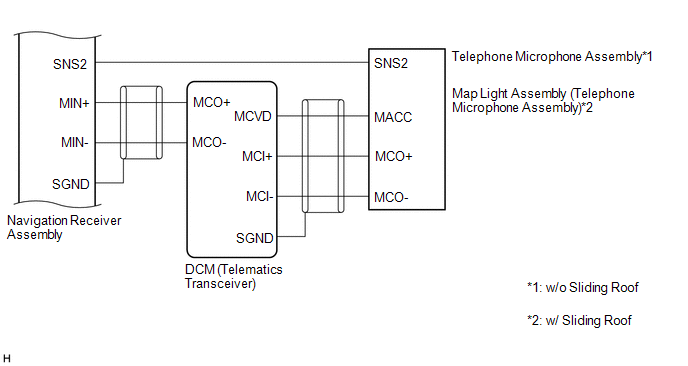

w/ Manual (SOS) Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Manual (SOS) Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

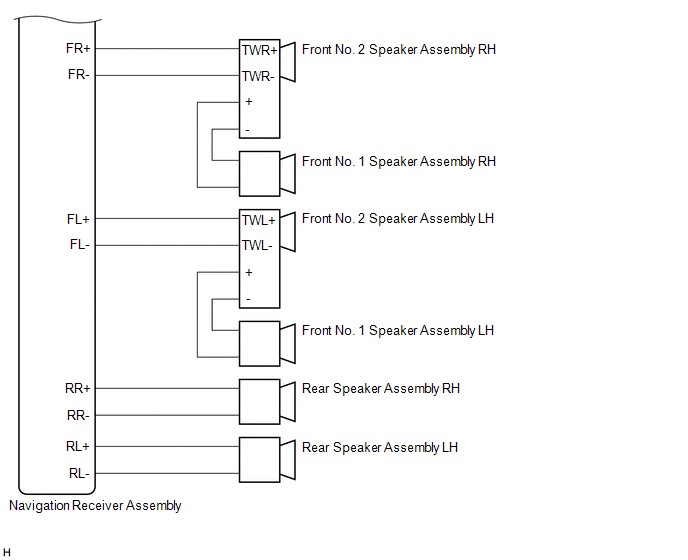

for 6 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

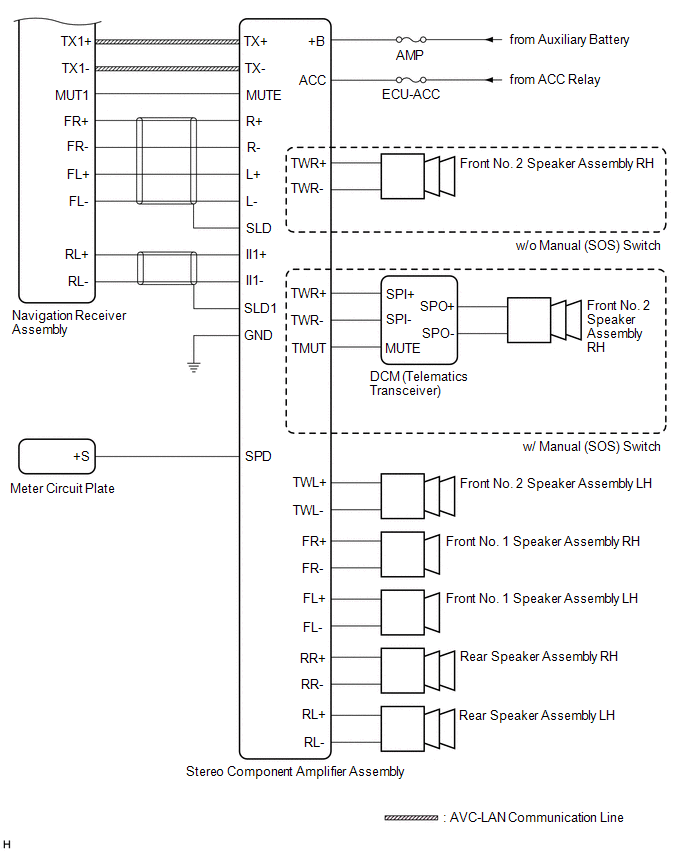

for 10 Speakers

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
