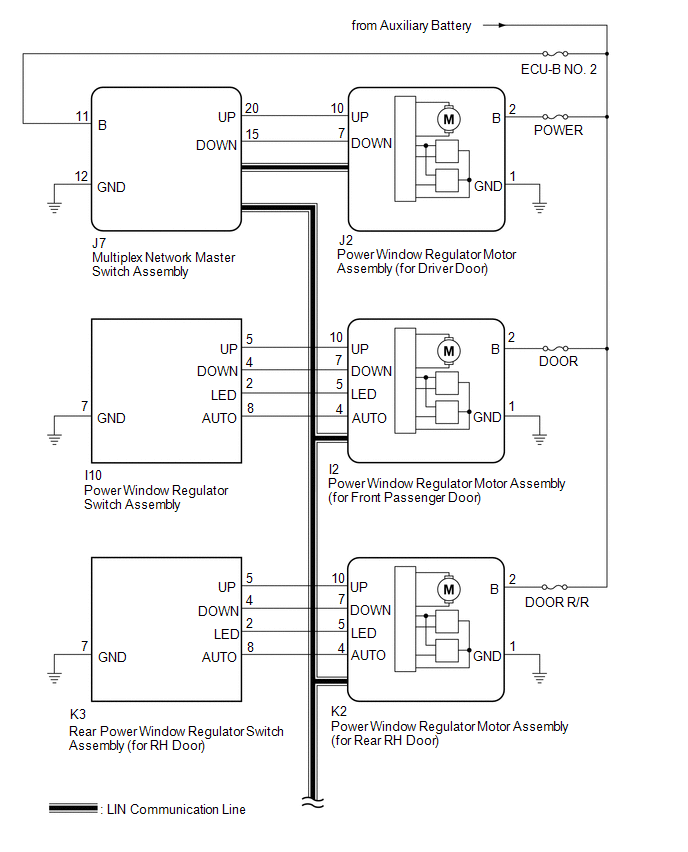

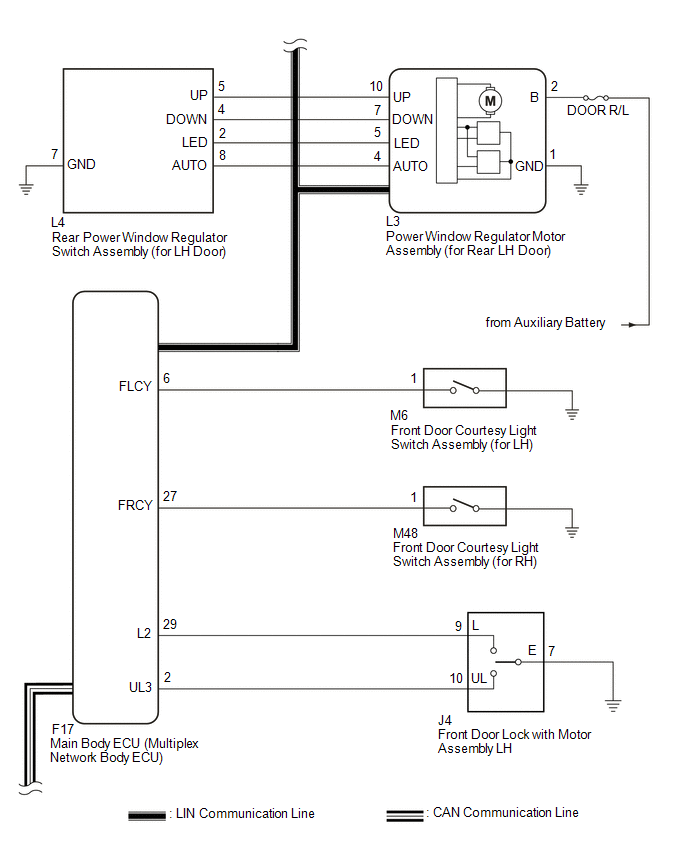

System Diagram [11/2015 - ]
COMMUNICATION TABLE
| Transmitting ECU | Receiving ECU | Signal | Communication Method |
|---|---|---|---|
| Multiplex Network Master Switch Assembly | Power Window Regulator Motor Assembly (for Driver Door) | Power window auto up and down signal | LIN |
|
Power window remote up and down signal | LIN | |
| Main Body ECU (Multiplex Network Body ECU) |
|
Power window operation permission signal | LIN |
| Certification ECU (Smart Key ECU Assembly) | Main Body ECU (Multiplex Network Body ECU) | Wireless power window operation signal | CAN |
| Main Body ECU (Multiplex Network Body ECU) | Combination Meter Assembly | Window open warning request signal | CAN |
