Power Steering System
>>
System Diagram [12/2018 - 07/2020]
>>
System Diagram [12/2018 - 07/2020]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

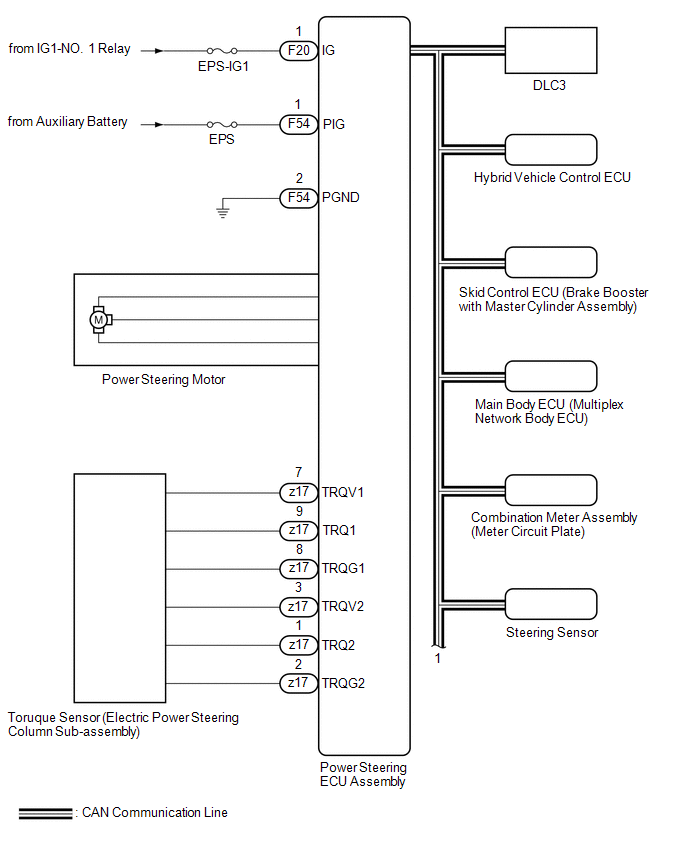

System Diagram [12/2018 - 07/2020]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
