DTC B2799-86: Engine Immobiliser System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid [11/2018 - 08/2020]: Wiring Diagram

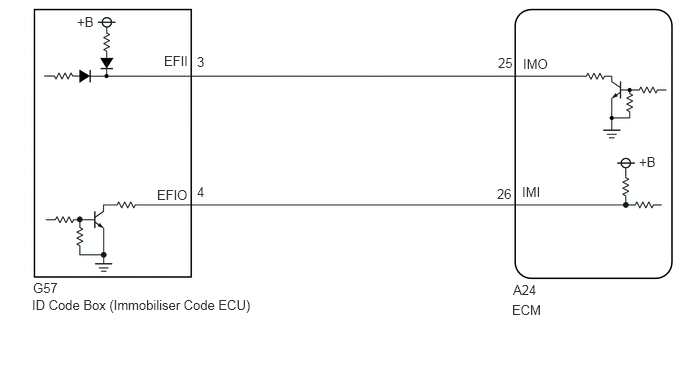

w/o Occupant Classification System:

GTY862350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

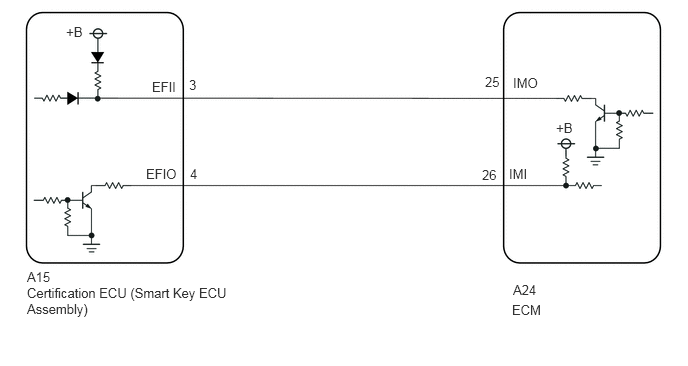

w/ Occupant Classification System:

GTY845190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
