Front Camera System - Diagnostics - Introduction
>>
Front Camera System
>>
System Diagram [11/2018 - 12/2021]
>>
System Diagram [11/2018 - 12/2021]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [11/2018 - 12/2021]

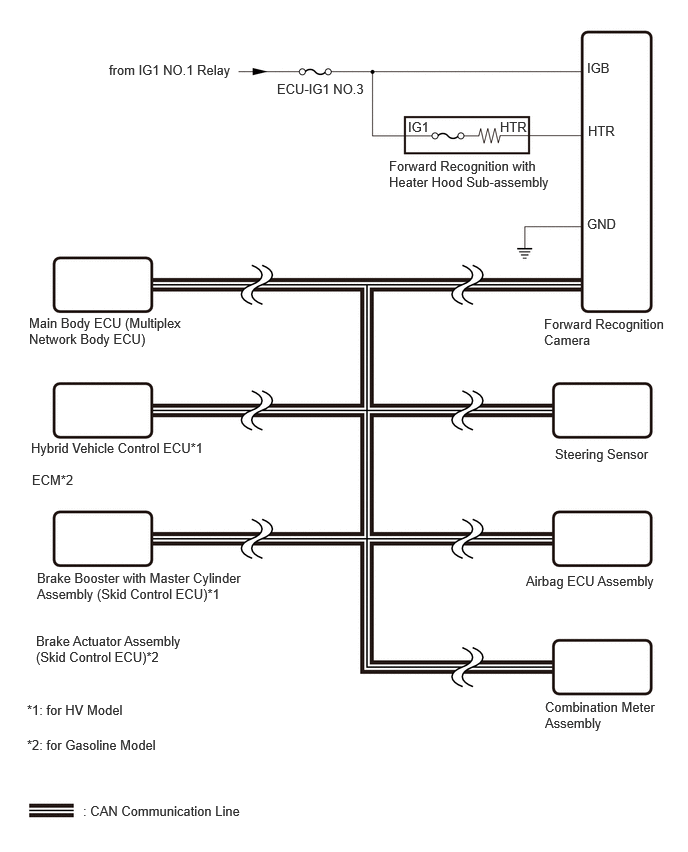

Fig 1: Front Camera System Diagram [11/2018 - 12/2021]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
