Removal [11/2018 - ]: Procedure
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 20 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 20 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 20 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 20 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 20 [10/2023 - ]
- REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)

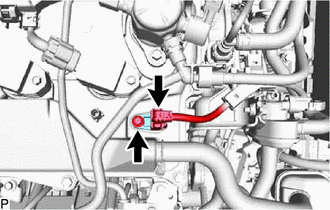

- Disconnect the camshaft position sensor connector.
- Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.NOTE:
If the camshaft position sensor has been struck or dropped, replace it.
*1 O-ring Perform this procedure only when reusing the camshaft position sensor.
- Remove the O-ring from the camshaft position sensor.NOTE:
- Make sure to only remove the O-ring with bare hands.
- When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
- If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.
- Remove the O-ring from the camshaft position sensor.
- Disconnect the camshaft position sensor connector.
- REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)

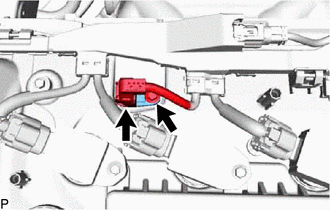

- Disconnect the camshaft position sensor connector.
- Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.NOTE:
If the camshaft position sensor has been struck or dropped, replace it.
*1 O-ring Perform this procedure only when reusing the camshaft position sensor.
- Remove the O-ring from the camshaft position sensor.NOTE:
- Make sure to only remove the O-ring with bare hands.
- When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
- If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.
- Remove the O-ring from the camshaft position sensor.
- Disconnect the camshaft position sensor connector.
