Removal [08/2020 - ]: Procedure

DRAIN ENGINE COOLANT
Refer to REPLACEMENT [11/2018 - ]
REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 20 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 20 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 20 [10/2023 - ]

REMOVE INLET AIR CLEANER ASSEMBLY

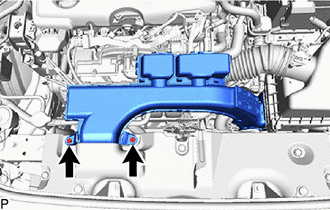

Remove the 2 bolts and inlet air cleaner assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

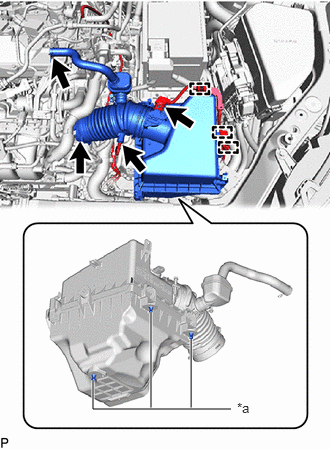

Disconnect the mass air flow meter sub-assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the 3 wire harness clamps.
Disconnect the vacuum hose from the air cleaner hose.
Slide the clip and disconnect the No. 2 PCV hose from the cylinder head cover sub-assembly.
Lock the hose clip and remove the air cleaner assembly with air cleaner hose from the throttle body with motor assembly.
Pull out the air cleaner assembly with air cleaner hose 3 pins from the air cleaner support.

REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

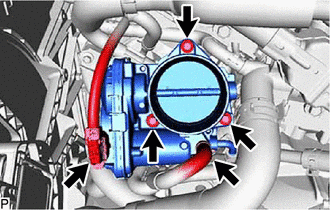

Disconnect the throttle body with motor assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

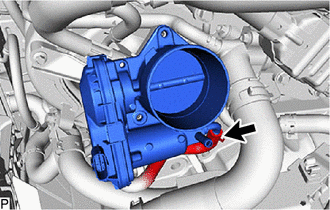

Slide the clip and disconnect the No. 6 water by-pass hose from the throttle body with motor assembly.
Remove the 3 bolts and disconnect the throttle body with motor assembly from the intake manifold.

Slide the clip and disconnect the No. 5 water by-pass hose to remove the throttle body with motor assembly.

NOTE:

If the throttle body with motor assembly has been struck or dropped, replace it.

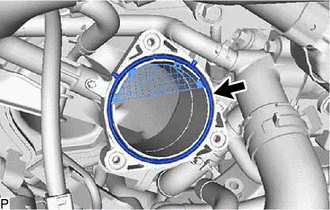

Remove the throttle body gasket from the intake manifold.
