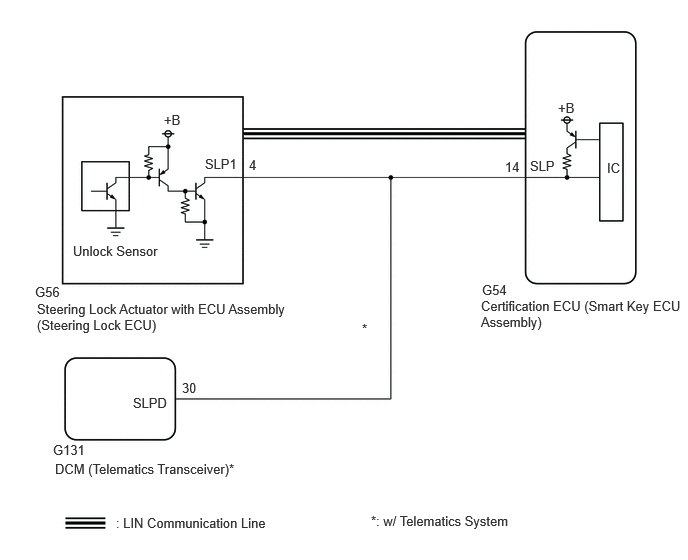

DTC B2285: Steering Lock Position Signal Circuit Malfunction [10/2019 - 12/2021]: Wiring Diagram

GTY1117806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
