Unable to Unlock Steering Wheel (Engine cannot Start) [08/2020 - 12/2021]: Wiring Diagram

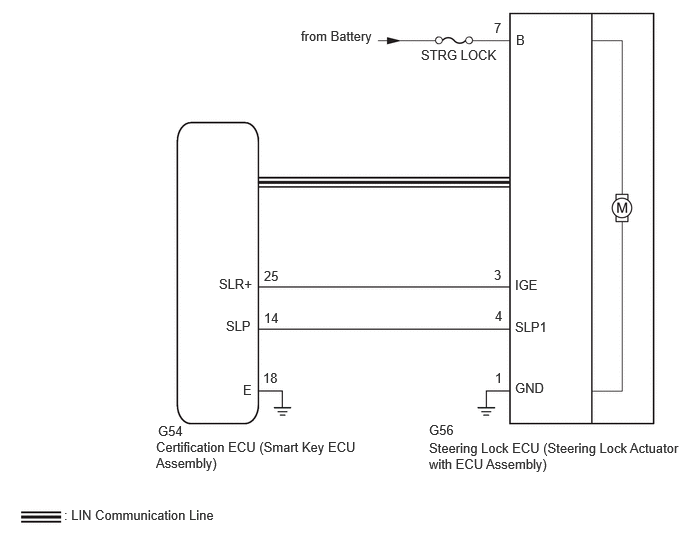

Fig 1: Unable To Unlock Steering Wheel (Engine Cannot Start) [08/2020 - 12/2021]
GTY1112944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
