Unable to Unlock Steering Wheel (Engine cannot Start) [11/2018 - 08/2020]: Wiring Diagram

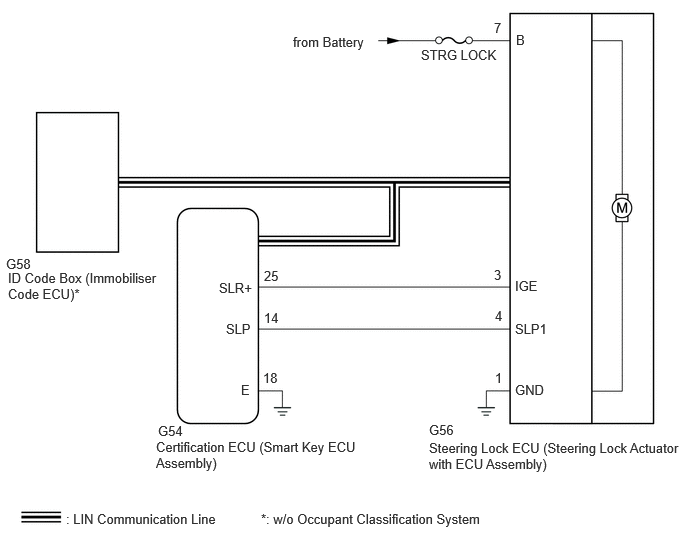

Fig 1: Unable To Unlock Steering Wheel (Engine Cannot Start) [11/2018 - 08/2020]
GTY1109505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
