System Diagram [11/2018 - 02/2019]

  1. WIRELESS DOOR LOCK CONTROL SYSTEM

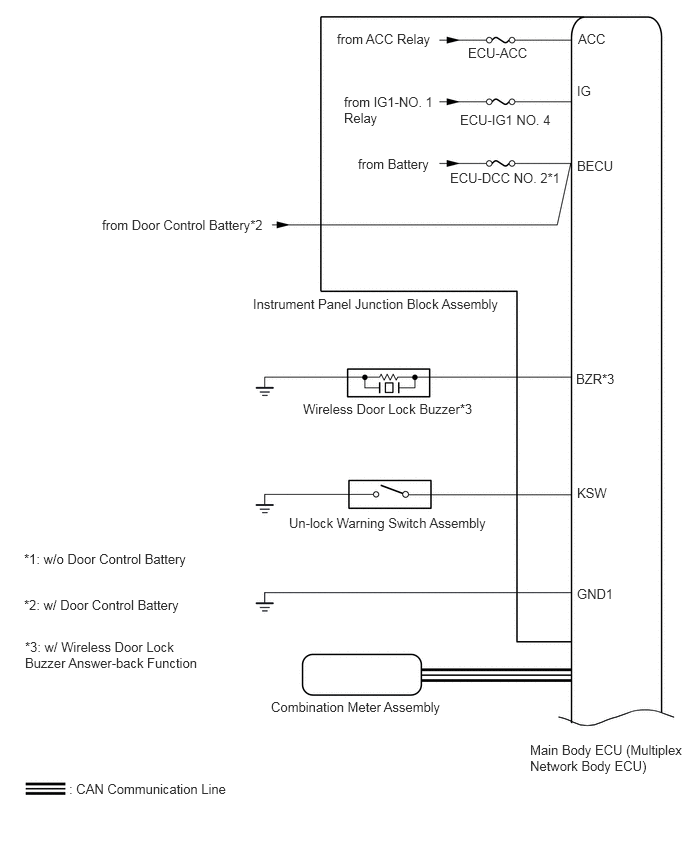

    Fig 1: Wireless Door Lock Control System [11/2018 - 02/2019] (1 Of 2)
    GTY854899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

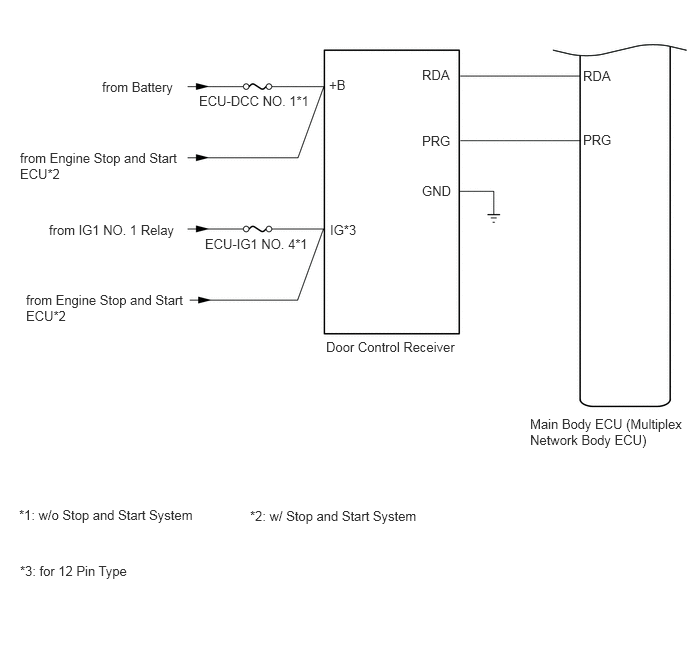

    Fig 2: Wireless Door Lock Control System [11/2018 - 02/2019] (2 Of 2)
    GTY878886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. POWER DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [11/2018 - 08/2020]
