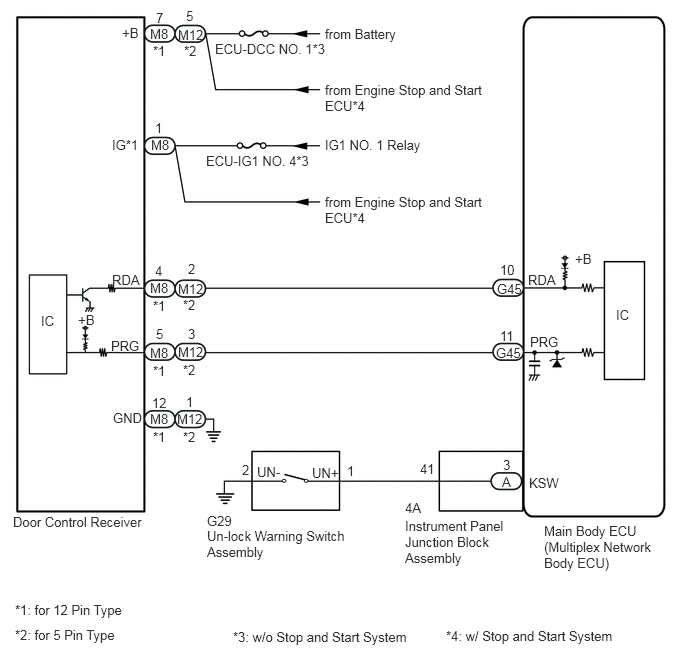

Only Wireless Control Function is Inoperative [11/2018 - 02/2019]: Wiring Diagram

GTY839206

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
