Steering Pad Switch Circuit [08/2020 - 12/2021]: Wiring Diagram

for HV Model:

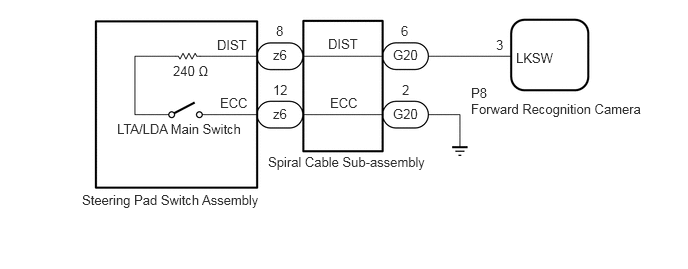

Fig 1: for HV Model: [08/2020 - 12/2021]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for Gasoline Model:

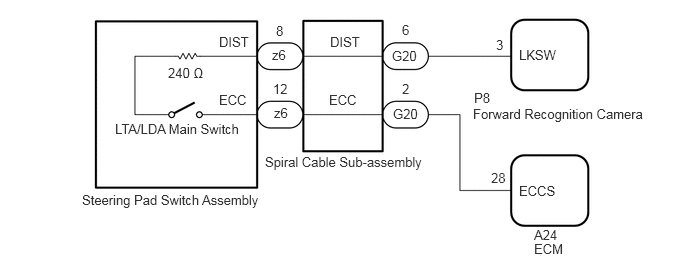

Fig 2: for Gasoline Model: [08/2020 - 12/2021]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
