Reverse Signal Circuit between Radio Receiver Assembly and Navigation ECU [11/2018 - 08/2020]: Wiring Diagram

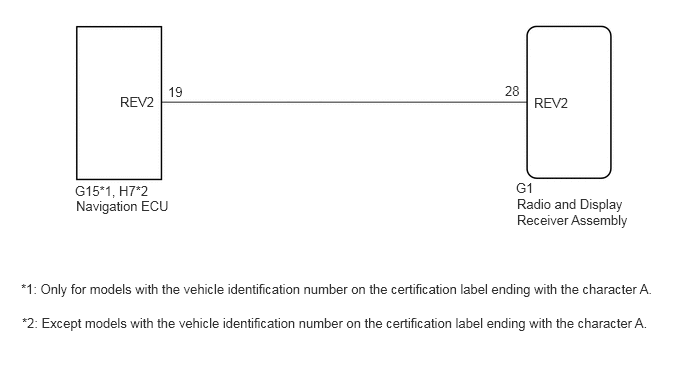

Fig 1: Reverse Signal Circuit Between Radio Receiver Assembly And Navigation Ecu [11/2018 - 08/2020]
GTY851602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
