DTC B1543: Extension Module Disconnected 2 [11/2018 - 08/2020]: Procedure
- CHECK MAP SCREEN
- Turn the ignition switch to ACC and wait for 90 seconds.
- Press the "MAP" switch and check that the map screen is displayed normally.
Result
Result Proceed to Map screen is displayed normally A Map screen is not displayed normally B HINT:
- This DTC may be stored due to environmental reasons such as electrical noise or interference.
- Clear past DTCs when the map screen is displayed normally. (Codes stored due to past environmental factors)
Result:
A
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]
Result:
B
See step 2
- CHECK DTC
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [11/2018 - 10/2019] , or refer to DTC CHECK / CLEAR [10/2019 - 10/2022]
Body Electrical > Navigation System > Clear DTCs
- Turn the ignition switch off.
- Turn the ignition switch to ON and wait for 90 seconds.
- Recheck for DTCs and check that no DTCs are output.
Refer to DTC CHECK / CLEAR [11/2018 - 10/2019] , or refer to DTC CHECK / CLEAR [10/2019 - 10/2022]
Body Electrical > Navigation System > Trouble Codes
OK
No DTCs are output.
Result
Proceed to OK NG
Result:
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]
Result:
NG
See step 3
- Clear the DTCs.
- CHECK HARNESS AND CONNECTOR (NAVIGATION ECU - BATTERY AND BODY GROUND)
- *1: Only for models with the vehicle identification number on the certification label ending with the character A.
*2: Except models with the vehicle identification number on the certification label ending with the character A.
- Disconnect the navigation ECU connector.

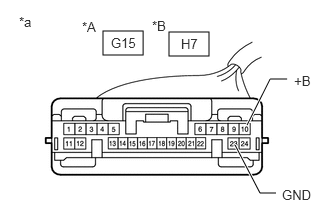

*A Only for models with the vehicle identification number on the certification label ending with the character A. *B Except models with the vehicle identification number on the certification label ending with the character A. *a Front view of wire harness connector
(to Navigation ECU) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G15-23 (GND) - Body ground*1 Always Below 1 Ω H7-23 (GND) - Body ground*2 Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition G15-10 (+B) - Body ground*1 Ignition switch off 11 to 14 V H7-10 (+B) - Body ground*2 Ignition switch off 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- *1: Only for models with the vehicle identification number on the certification label ending with the character A.
- CHECK NO. 2 NAVIGATION WIRE (NAVIGATION ECU - NO. 1 NAVIGATION WIRE)
- Disconnect the G120 navigation ECU connector.

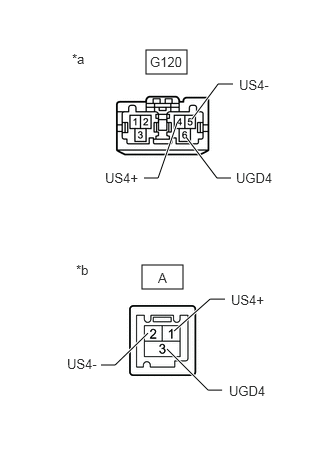

*a Front view of wire harness connector
(to Navigation ECU)*b Front view of wire harness connector
(to No. 1 Navigation Wire) - Disconnect the A No. 1 navigation wire connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G120-4 (US4+) - A-1 (US4+) Always Below 1 Ω G120-5 (US4-) - A-2 (US4-) Always Below 1 Ω G120-6 (UGD4) - A-3 (UGD4) Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPLACE NO. 2 NAVIGATION WIRE. Refer to REMOVAL [11/2018 - 10/2019] , or refer to REMOVAL [10/2019 - 10/2022]
Result:
OK
See step 5
- Disconnect the G120 navigation ECU connector.
- CHECK NO. 1 NAVIGATION WIRE (NO. 2 NAVIGATION WIRE - RADIO AND DISPLAY RECEIVER ASSEMBLY)
- Disconnect the B No. 2 navigation wire connector.

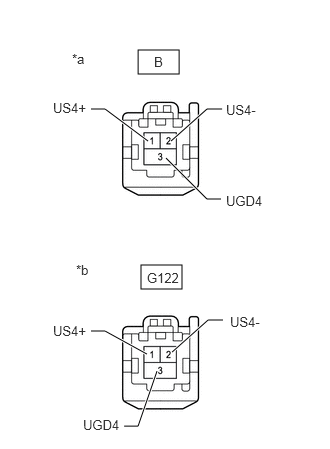

*a Front view of wire harness connector
(to No. 2 Navigation Wire)*b Front view of wire harness connector
(to Radio and Display Receiver Assembly) - Disconnect the G122 radio and display receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition B-1 (US4+) - G122-1 (US4+) Always Below 1 Ω B-2 (US4-) - G122-2 (US4-) Always Below 1 Ω B-3 (UGD4) - G122-3 (UGD4) Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPLACE NO. 1 NAVIGATION WIRE. Refer to DISASSEMBLY [11/2018 - 12/2021]
Result:
OK
See step 6
- Disconnect the B No. 2 navigation wire connector.
- REPLACE NAVIGATION ECU
- Replace the navigation ECU with a new one.
Refer to REMOVAL [11/2018 - 10/2019] , or refer to REMOVAL [10/2019 - 10/2022]
Result
Proceed to NEXT
Result:
NEXT
See step 7
- Replace the navigation ECU with a new one.
- CHECK DTC
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [11/2018 - 10/2019] , or refer to DTC CHECK / CLEAR [10/2019 - 10/2022]
Body Electrical > Navigation System > Clear DTCs
- Turn the ignition switch off.
- Turn the ignition switch to ON and wait for 90 seconds.
- Recheck for DTCs and check that no DTCs are output.
Refer to DTC CHECK / CLEAR [11/2018 - 10/2019] , or refer to DTC CHECK / CLEAR [10/2019 - 10/2022]
Body Electrical > Navigation System > Trouble Codes
OK
No DTCs are output.
Result
Proceed to OK NG
Result:
OK
END (NAVIGATION ECU IS DEFECTIVE)
Result:
NG
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY. Refer to REMOVAL [11/2018 - 10/2022]
- Clear the DTCs.
