DTC P0606-29: Backup Boost Converter "A" Control CPU Signal Invalid [11/2018 - 10/2023]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the engine stop and start ECU connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

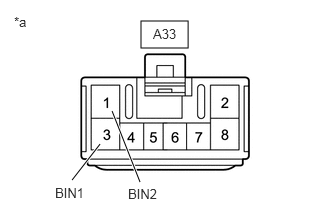

   Tester Connection	Condition	Specified Condition
   A33-1 (BIN2) - Body ground	Always	9.5 to 14 V
   A33-3 (BIN1) - Body ground	Always	9.5 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

1. Disconnect the engine stop and start ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A33-2 (GND2) - Body ground	Always	Below 1 Ω
   A33-8 (GND1) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ENGINE STOP AND START ECU. Refer to  REMOVAL [11/2018 - 10/2019]  , or refer to  REMOVAL [10/2019 - 08/2020]  , or refer to  REMOVAL [08/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
