DTC B1771: Passenger Side Buckle Switch Circuit Malfunction [11/2018 - 02/2019]: Procedure
- CHECK CONNECTION OF CONNECTORS
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Check that the connectors are properly connected to the occupant detection ECU and front seat inner belt assembly RH.
Result
Proceed to Connectors are properly connected Connectors are not properly connected
Result:
Connectors are not properly connected
CONNECT CONNECTORS PROPERLY
Result:
Connectors are properly connected
See step 2
- CHECK CONNECTORS
- Disconnect the connectors from the occupant detection ECU and front seat inner belt assembly RH.
- Check that the connectors (on the occupant detection ECU side and front seat inner belt assembly RH side) are not damaged.
Result
Proceed to Connectors are not deformed or damaged Connectors are deformed or damaged
Result:
Connectors are deformed or damaged
REPLACE FRONT SEAT WIRE RH. Refer to DISASSEMBLY [11/2018 - 08/2020]
Result:
Connectors are not deformed or damaged
See step 3
- CHECK FRONT SEAT WIRE RH
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

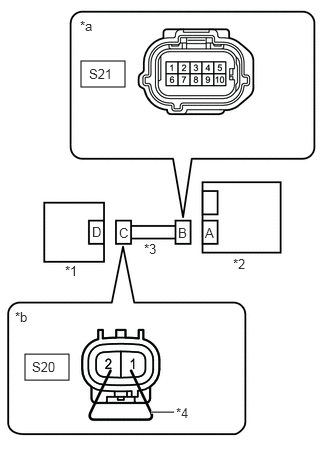

*1 Front Seat Inner Belt Assembly RH *2 Occupant Detection ECU *3 Front Seat Wire RH *4 Service Wire *a Front view of wire harness connector
(to Occupant Detection ECU)*b Front view of wire harness connector
(to Front Seat Inner Belt Assembly RH) - Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition S21-7 - Body ground Ignition switch ON Below 1 V S21-9 - Body ground - Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Using a service wire, connect terminals 1 and 2 of connector C.NOTE:
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition S21-7 - S21-9 Always Below 1 Ω - Disconnect the service wire from connector C.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition S21-7 - S21-9 Always 1 MΩ or higher S21-7 - Body ground S21-9 - Body ground Result
Proceed to OK NG
Result:
NG
REPLACE FRONT SEAT WIRE RH. Refer to DISASSEMBLY [11/2018 - 08/2020]
Result:
OK
See step 4
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- CHECK DTC
- Connect the connectors to the occupant detection ECU and front seat inner belt assembly RH.
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Clear the DTCs stored in the occupant detection ECU.
Refer to DTC CHECK / CLEAR [11/2018 - ]
Body Electrical > Occupant Detection > Clear DTCs
- Clear the DTCs stored in the airbag ECU assembly.
Refer to DTC CHECK / CLEAR [11/2018 - ]
Body Electrical > SRS Airbag > Clear DTCs
- Turn the ignition switch off.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Check the DTCs stored in the occupant detection ECU.
Refer to DTC CHECK / CLEAR [11/2018 - ]
Body Electrical > Occupant Detection > Trouble Codes
Result
Proceed to DTC B1771 is output DTC B1771 is not output HINT:
Codes other than DTC B1771 may be output at this time, but they are not related to this check.
Result:
DTC B1771 is not output
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]
Result:
DTC B1771 is output
See step 5
- REPLACE FRONT SEAT INNER BELT ASSEMBLY RH
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Replace the front seat inner belt assembly RH with a new one.
Refer to REMOVAL [11/2018 - 02/2019]
HINT:
Perform the inspection using parts from a normal vehicle if possible.
Result
Proceed to NEXT
Result:
NEXT
See step 6
- CHECK DTC
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Clear the DTCs stored in the occupant detection ECU.
Refer to DTC CHECK / CLEAR [11/2018 - ]
Body Electrical > Occupant Detection > Clear DTCs
- Clear the DTCs stored in the airbag ECU assembly.
Refer to DTC CHECK / CLEAR [11/2018 - ]
Body Electrical > SRS Airbag > Clear DTCs
- Turn the ignition switch off.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Check the DTCs stored in the occupant detection ECU.
Refer to DTC CHECK / CLEAR [11/2018 - ]
Body Electrical > Occupant Detection > Trouble Codes
Result
Proceed to DTC B1771 is not output DTC B1771 is output HINT:
Codes other than DTC B1771 may be output at this time, but they are not related to this check.
Result:
DTC B1771 is not output
END (FRONT SEAT INNER BELT ASSEMBLY RH WAS DEFECTIVE)
Result:
DTC B1771 is output
See step 7
- REPLACE OCCUPANT DETECTION ECU
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Replace the occupant detection ECU with a new one.
Refer to REMOVAL [11/2018 - 02/2019]
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
Result
Proceed to NEXT
Result:
NEXT
See step 8
- PERFORM ZERO POINT CALIBRATION
- Using the Techstream, perform "Zero Point Calibration".
Refer to INITIALIZATION [11/2018 - ]
Body Electrical > Occupant Detection > Utility
Tester Display Zero Point Calibration Result
Proceed to NEXT
Result:
NEXT
END (OCCUPANT DETECTION ECU WAS DEFECTIVE)
- Using the Techstream, perform "Zero Point Calibration".
