Components [11/2018 - ]

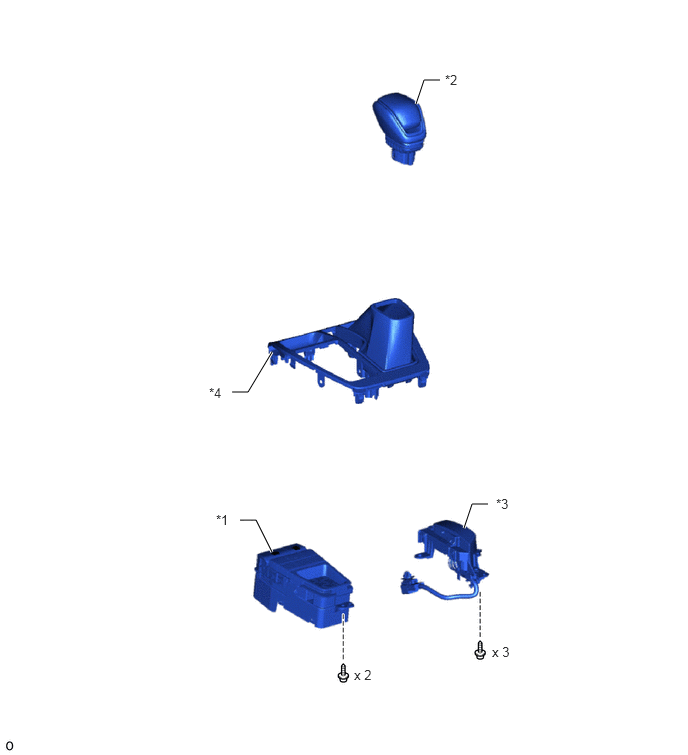

Fig 1: Multi-Terrain Select Switch Replacement Components
GTY860017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INTEGRATION CONTROL & PANEL ASSEMBLY *2 SHIFT LEVER KNOB SUB-ASSEMBLY
*3 SHIFT LEVER POSITION INDICATOR *4 UPPER CONSOLE PANEL SUB-ASSEMBLY
