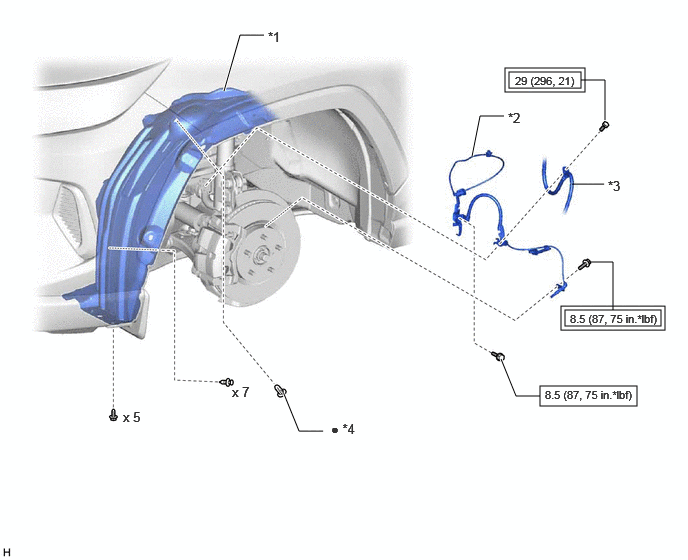

Components [11/2018 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FENDER LINER | *2 | FRONT SPEED SENSOR |
| *3 | FRONT FLEXIBLE HOSE | *4 | GROMMET |
| • | Non-reusable part | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
