Removal [02/2019 - 10/2019]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [11/2018 - ]

  2. REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to REMOVAL [02/2019 - 10/2019]

  3. REMOVE STEERING SENSOR

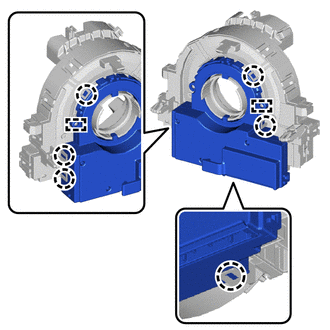

    1. Disengage the 6 claws and 2 pins, and remove the steering sensor from the spiral cable sub-assembly.
      GTY889081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the claws or pins of the spiral cable sub-assembly.
