Components [11/2018 - ]

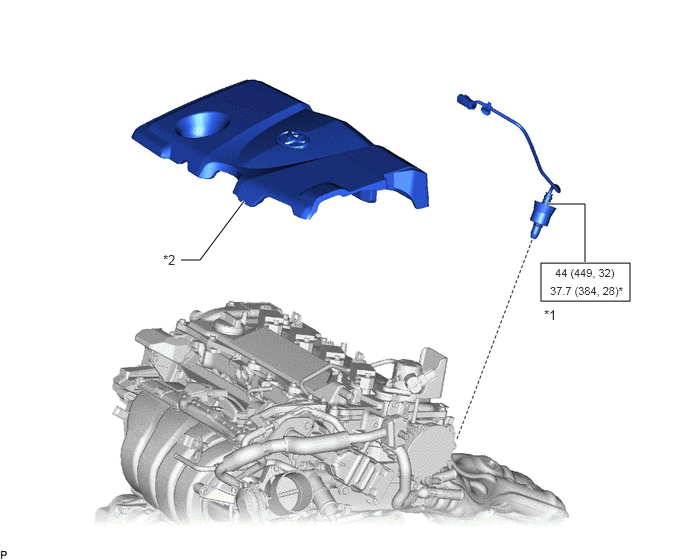

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR FUEL RATIO SENSOR (for Sensor 1)	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST

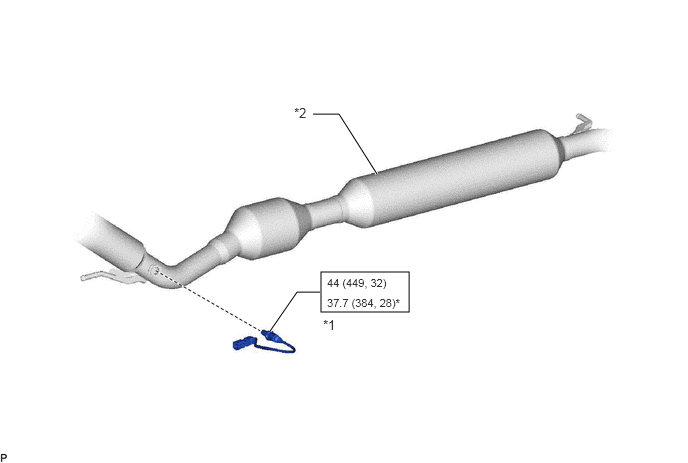

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	AIR FUEL RATIO SENSOR (for Sensor 2)	*2	FRONT EXHAUST PIPE ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
