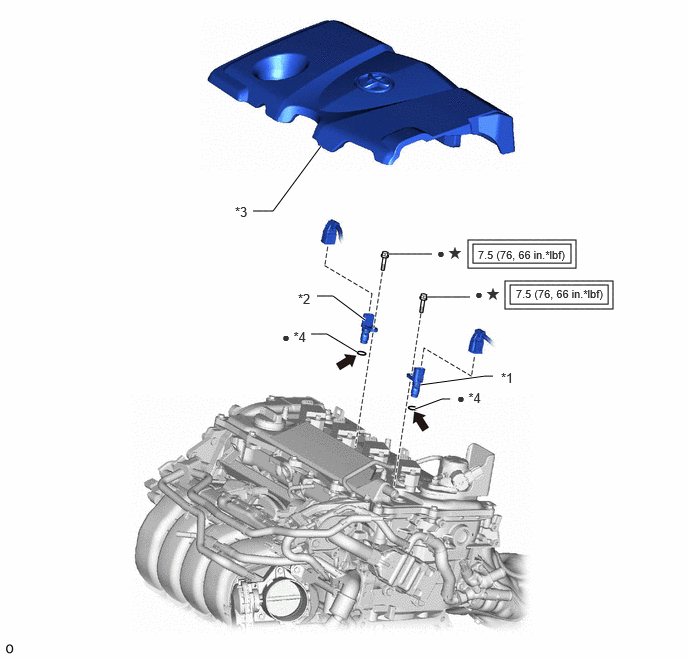

Components [11/2018 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CAMSHAFT POSITION SENSOR (for Intake Side) | *2 | CAMSHAFT POSITION SENSOR (for Exhaust Side) |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *4 | O-RING |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Engine Oil | * | Precoated part |
