Components [11/2018 - ]

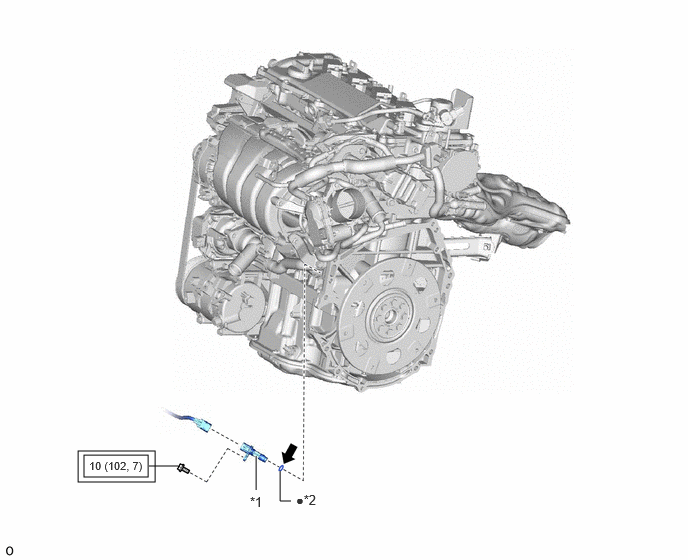

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY1177084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT POSITION SENSOR *2 O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) • Non-reusable part
Engine Oil - -
