Removal [11/2018 - 08/2020]: Procedure

DRAIN ENGINE COOLANT
Refer to REPLACEMENT [11/2018 - ]
REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (w/ Grille Shutter)
Refer to PROCEDURE - Step 20 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 20 [10/2019 - 08/2020]
REMOVE INLET AIR CLEANER ASSEMBLY (w/ Grille Shutter)
See step 3
REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE (w/ Grille Shutter)
See step 4

REMOVE NO. 2 ENGINE COOLANT TEMPERATURE SENSOR (w/ Grille Shutter)

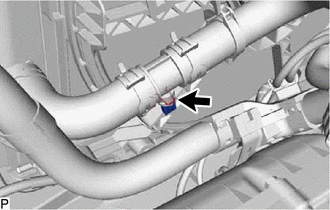

Disconnect the No. 2 engine coolant temperature sensor connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

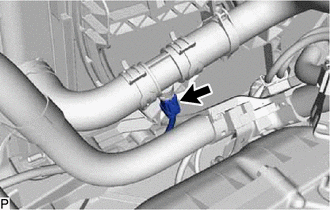

Remove the clip and No. 2 engine coolant temperature sensor from the water outlet.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If the No. 2 engine coolant temperature sensor has been struck or dropped, replace it.

REMOVE BATTERY
Refer to REMOVAL [11/2018 - 10/2019] , or refer to REMOVAL [10/2019 - 08/2020]

REMOVE ENGINE COOLANT TEMPERATURE SENSOR

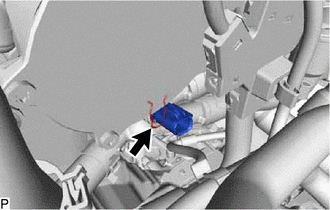

Disconnect the engine coolant temperature sensor connector.

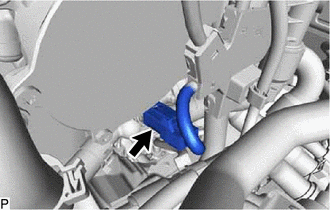

Remove the clip and engine coolant temperature sensor from the water outlet.

NOTE:

If the engine coolant temperature sensor has been struck or dropped, replace it.
