Removal [11/2018 - 08/2020]: Procedure

REMOVE GENERATOR ASSEMBLY
- for 100 A, 130 A Type:
  Refer to REMOVAL [11/2018 - 10/2019] , or refer to REMOVAL [10/2019 - 08/2020]
- for 150 A Type:
  Refer to REMOVAL [11/2018 - 10/2019] , or refer to REMOVAL [10/2019 - 08/2020]

REMOVE KNOCK CONTROL SENSOR

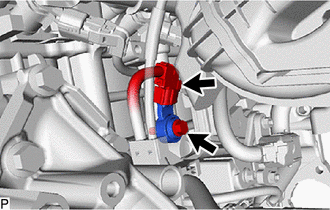

Disconnect the knock control sensor connector.

Remove the bolt and knock control sensor from the cylinder block sub-assembly.
NOTE:
If the knock control sensor has been struck or dropped, replace it.
