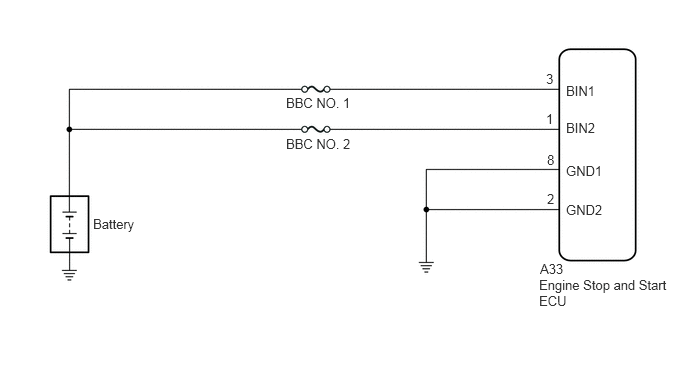

DTC P0606-29: Backup Boost Converter "A" Control CPU Signal Invalid [11/2018 - 10/2023]: Wiring Diagram

GTY873599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
