System Diagram [08/2020 - 12/2021]

Fig 1: Stop And Start System Diagram (1 Of 7)

GTY846532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Stop And Start System Diagram (2 Of 7)

GTY850554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

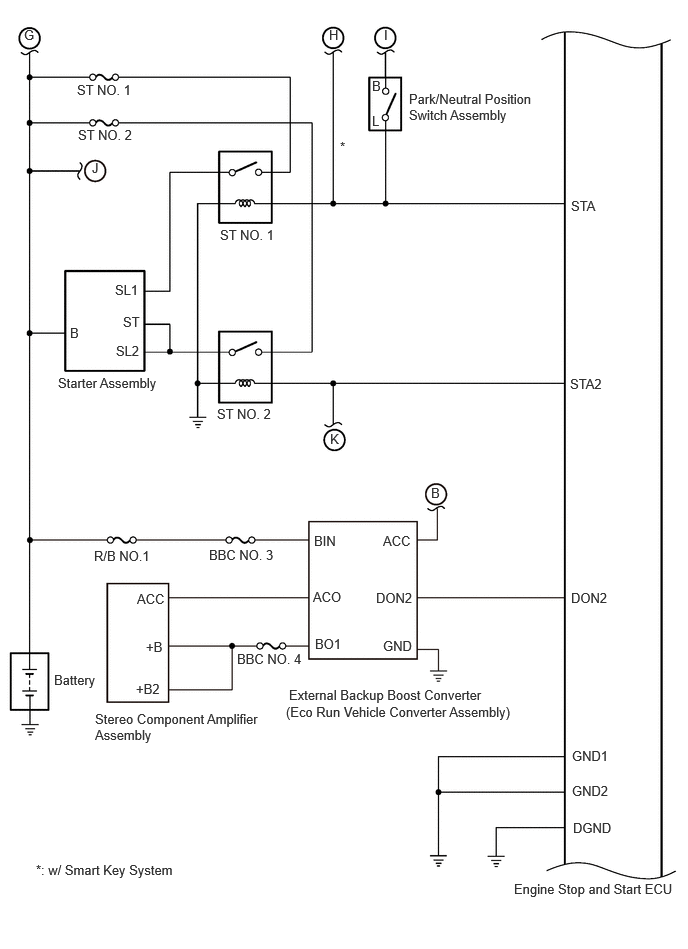

Fig 3: Stop And Start System Diagram (3 Of 7)

GTY1001750

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Stop And Start System Diagram (4 Of 7)

GTY864522

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Stop And Start System Diagram (5 Of 7)

GTY941301

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

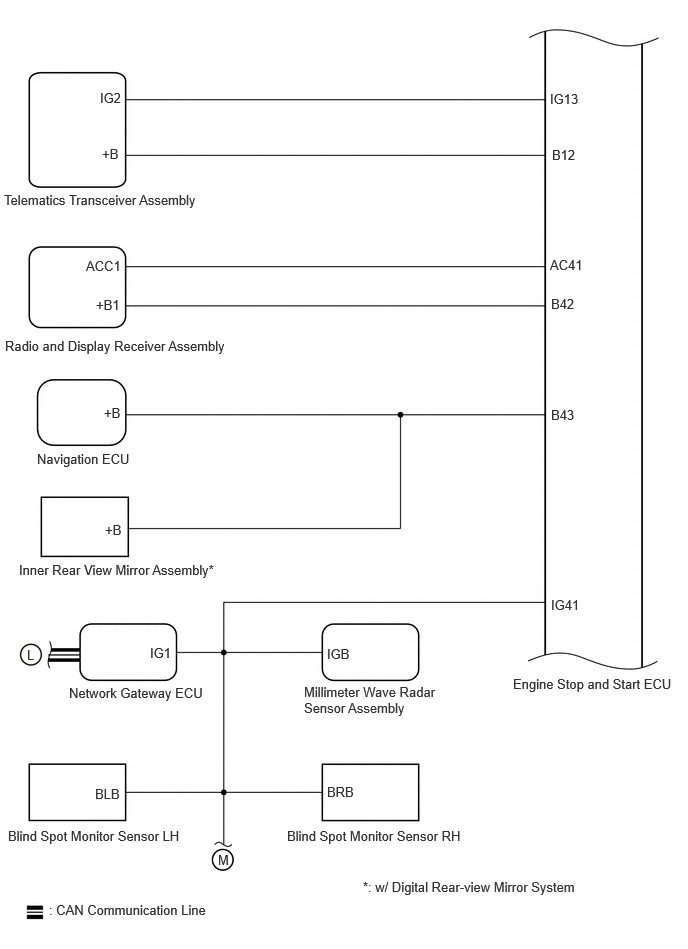

Fig 6: Stop And Start System Diagram (6 Of 7)

GTY1103634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

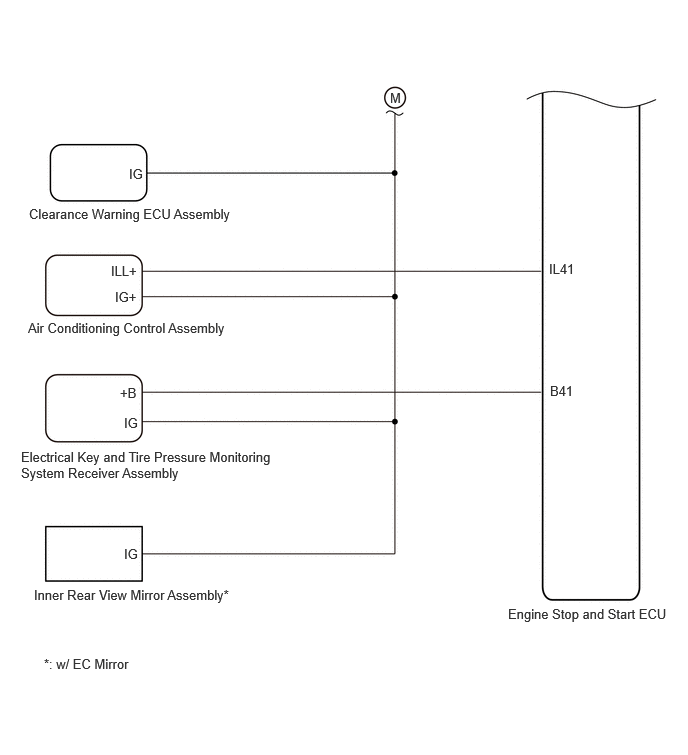

Fig 7: Stop And Start System Diagram (7 Of 7)

GTY1107376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
