Removal [10/2019 - 08/2020]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notices before proceeding with work.
Refer to PRECAUTION [11/2018 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [10/2019 - 06/2020] , or refer to INITIALIZATION [06/2020 - 08/2020]
- REMOVE FRONT BUMPER ASSEMBLY
- for Off Road Package:
Refer to REMOVAL [02/2019 - 08/2020]
- except Off Road Package:
Refer to REMOVAL [02/2019 - 08/2020]
- for Off Road Package:

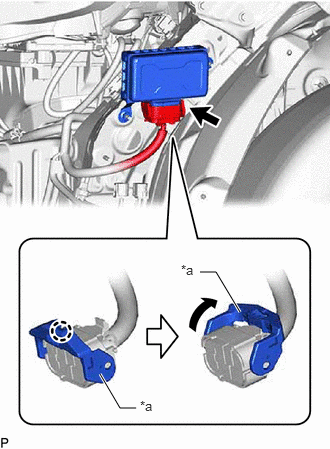

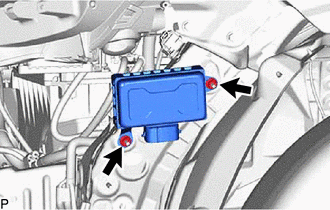

- REMOVE ECO-RUN VEHICLE CONVERTER ASSEMBLY

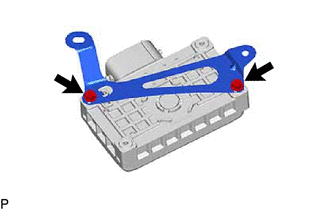

- REMOVE NO. 1 CONVERTER CONTROL BRACKET
