Components [11/2018 - ]

WARNING: This page is about a different variant/trim than selected.

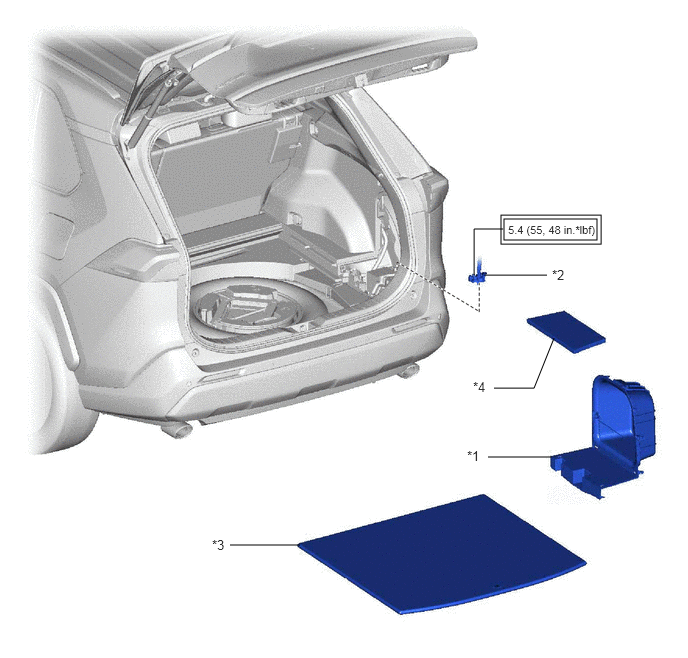

Fig 1: ECM Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY HOLE COVER	*2	CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
*3	DECK BOARD ASSEMBLY	*4	REAR NO. 2 FLOOR BOARD
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

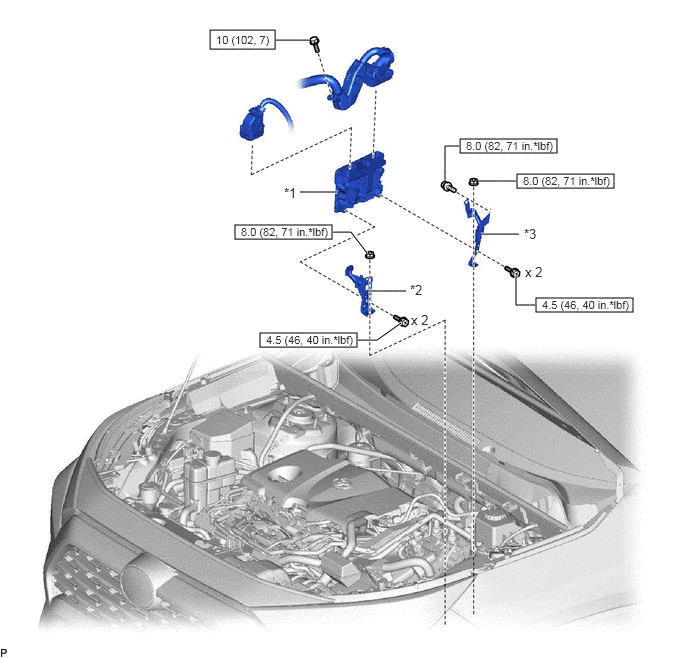

Fig 2: ECM Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	ECM	*2	NO. 1 ECM BRACKET
*3	NO. 2 ECM BRACKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
