Components [11/2018 - 02/2019]

WARNING: This page is about a different variant/trim than selected.

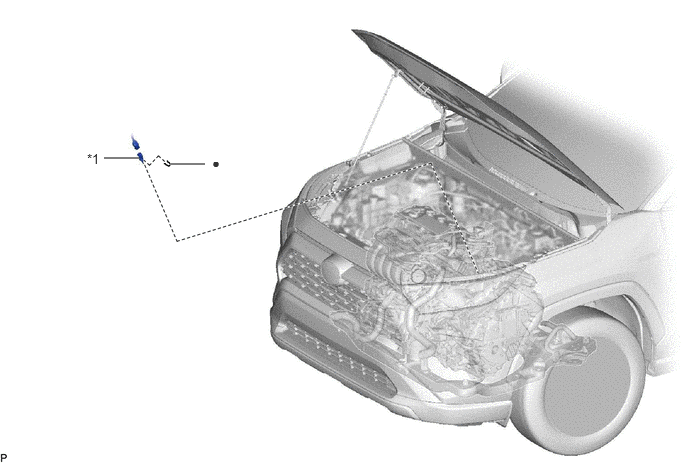

Fig 1: Engine Coolant Temperature Sensor Replacement Components [11/2018 - 02/2019]
GTY839589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE COOLANT TEMPERATURE SENSOR - -
• Non-reusable part - -
