Installation [02/2019 - 08/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL KNOCK CONTROL SENSOR

HINT:

Perform "Inspection After Repair" after replacing the knock control sensor.

w/ Canister Pump Module:
Refer to INITIALIZATION [02/2019 - 10/2019] , or refer to INITIALIZATION [10/2019 - 08/2020]
w/o Canister Pump Module:
Refer to INITIALIZATION [11/2018 - 08/2020]

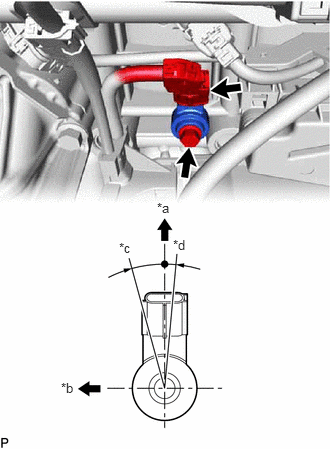

Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.

Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Top
*b	Right of Vehicle
*c	15°
*d	5°

NOTE:

If the knock control sensor has been struck or dropped, replace it.
Make sure that the knock control sensor is in the correct position.

Connect the knock control sensor connector.

INSTALL INTAKE MANIFOLD
Refer to INSTALLATION [11/2018 - ]
