Parts Location [02/2019 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

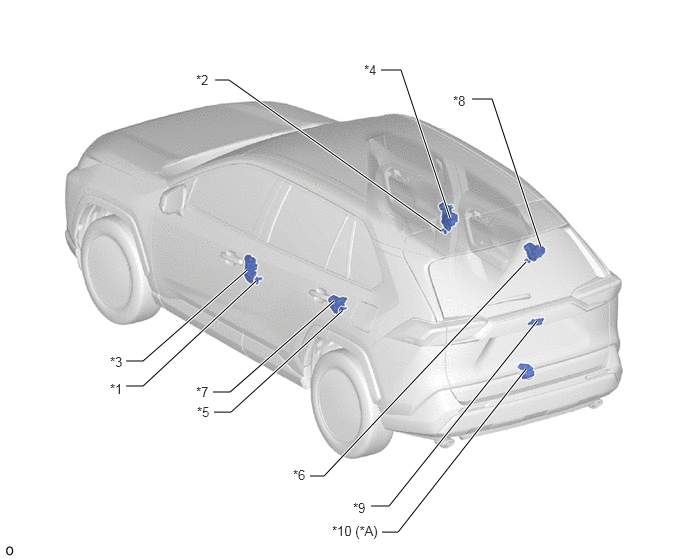

| *A | w/o Power Back Door System | - | - |
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *3 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH | *4 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY RH |
| *5 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *7 | REAR DOOR WITH MOTOR LOCK ASSEMBLY LH | *8 | REAR DOOR WITH MOTOR LOCK ASSEMBLY RH |
| *9 | BACK DOOR OPENER SWITCH ASSEMBLY | *10 | BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY |

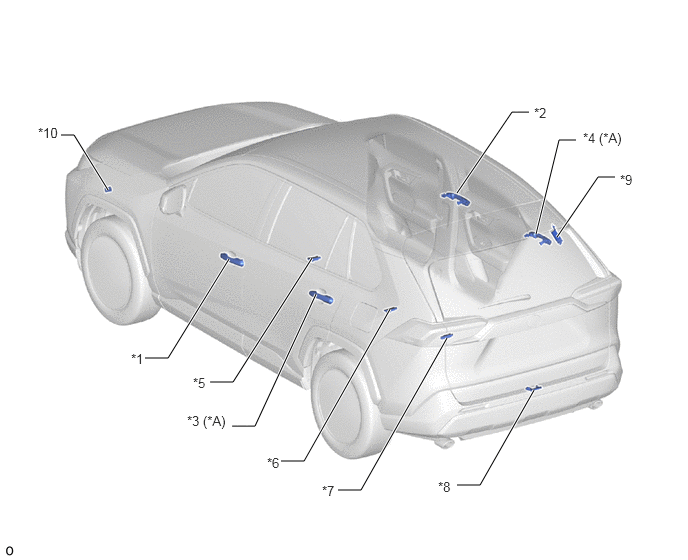

| *A | w/ Rear Door Entry | - | - |
| *1 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH
|
*2 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH
|
| *3 | REAR DOOR OUTSIDE HANDLE ASSEMBLY LH
|
*4 | REAR DOOR OUTSIDE HANDLE ASSEMBLY RH
|
| *5 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) | *6 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) |
| *7 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) | *8 | ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT) |
| *9 | DOOR CONTROL RECEIVER | *10 | WIRELESS DOOR LOCK BUZZER |

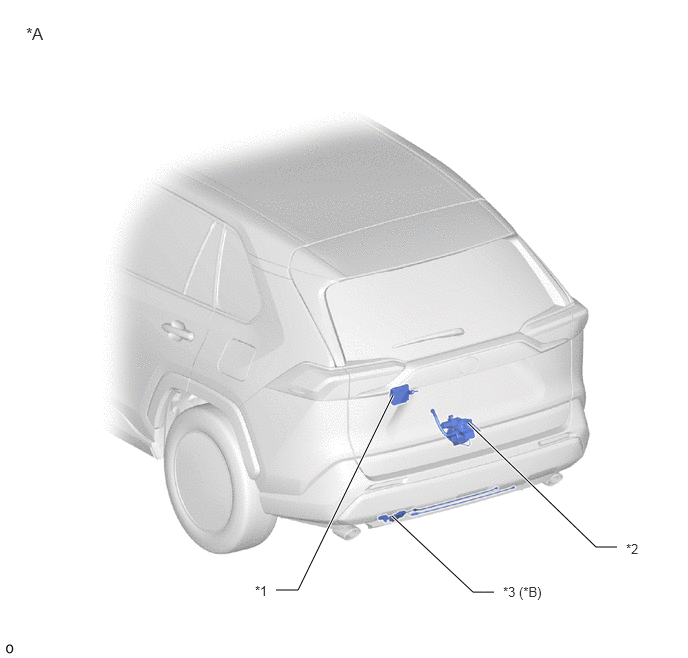

| *A | w/ Power Back Door System | *B | w/ Hands Free Power Back Door |
| *1 | MULTIPLEX NETWORK DOOR ECU | *2 | BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY |
| *3 | KICK DOOR CONTROL SENSOR | - | - |

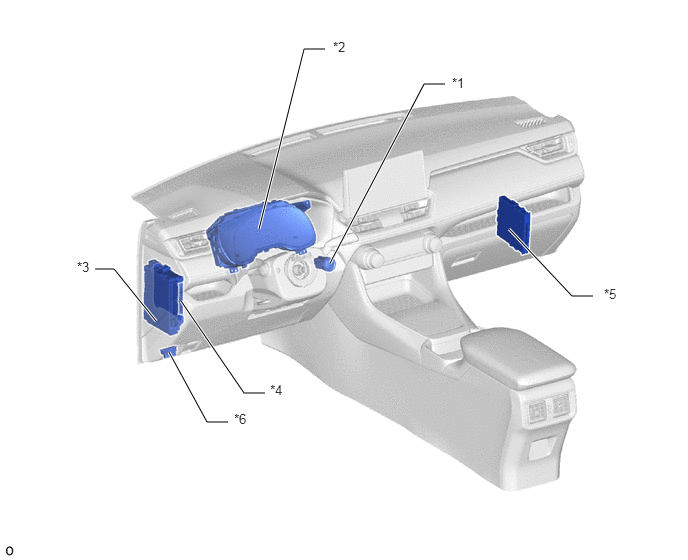

| *1 | POWER SWITCH | *2 | COMBINATION METER ASSEMBLY |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
|
*4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | DLC3 |
