System Diagram [11/2018 - 02/2019]
WARNING: This page is about a different variant/trim than selected.

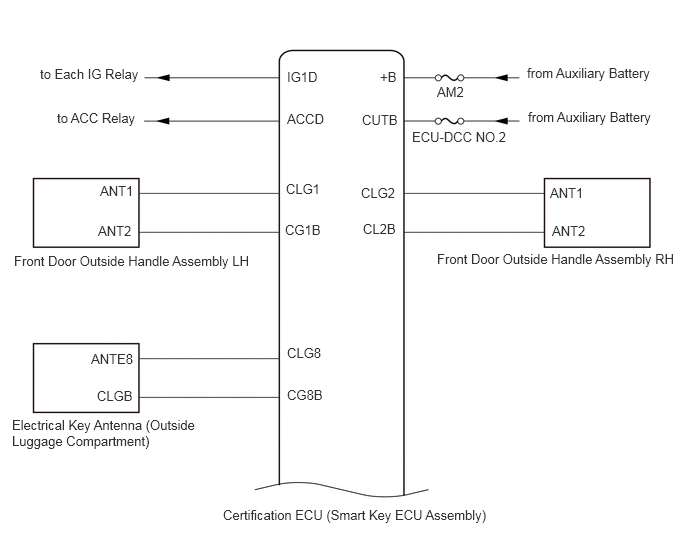

- SMART KEY SYSTEM (for Entry Function)
- SMART KEY SYSTEM (for Start Function)
Refer to SYSTEM DIAGRAM [11/2018 - 12/2021]
- POWER DOOR LOCK CONTROL SYSTEM
Refer to SYSTEM DIAGRAM [11/2018 - 08/2020]

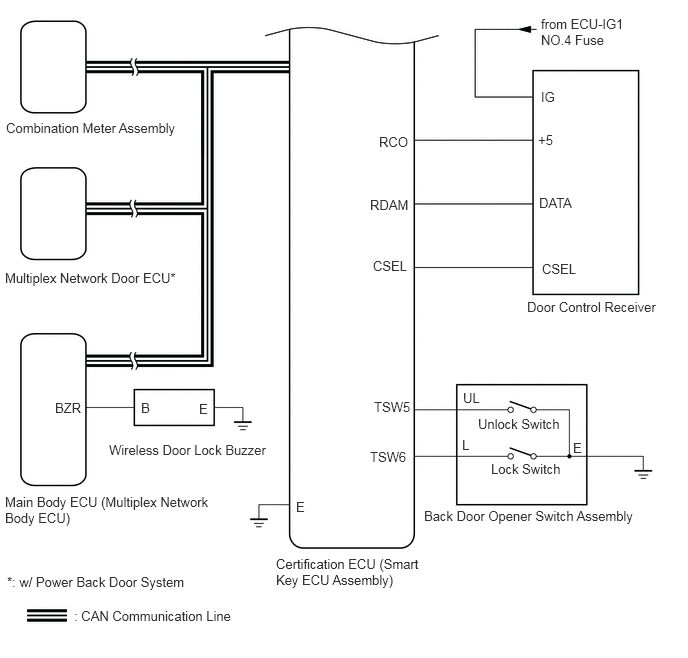

- WIRELESS DOOR LOCK CONTROL SYSTEM
Refer to SYSTEM DIAGRAM [11/2018 - ]
- POWER BACK DOOR SYSTEM (w/ Power Back Door System)
Refer to SYSTEM DIAGRAM [11/2018 - 08/2020]
