System Diagram [10/2022 - ]

WARNING: This page is about a different variant/trim than selected.

SMART KEY SYSTEM (for Start Function)

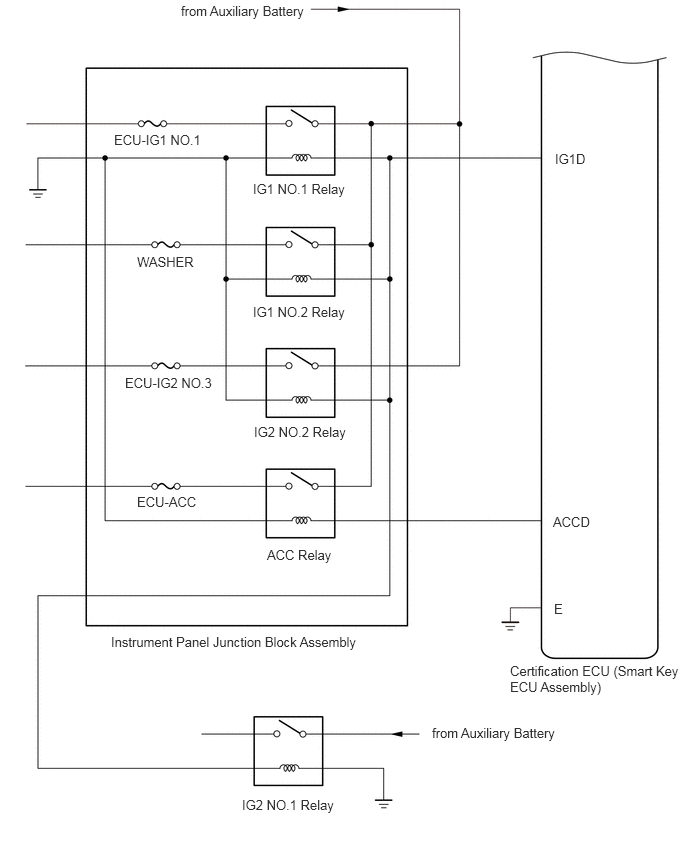

Fig 1: Smart Key System Diagram (For Start Function) (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

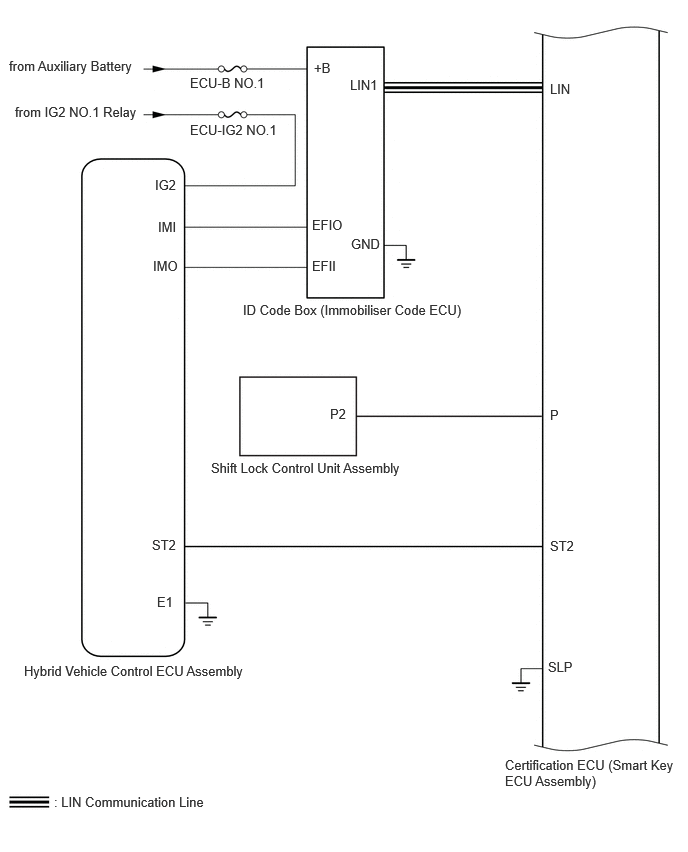

Fig 2: Smart Key System Diagram (For Start Function) (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

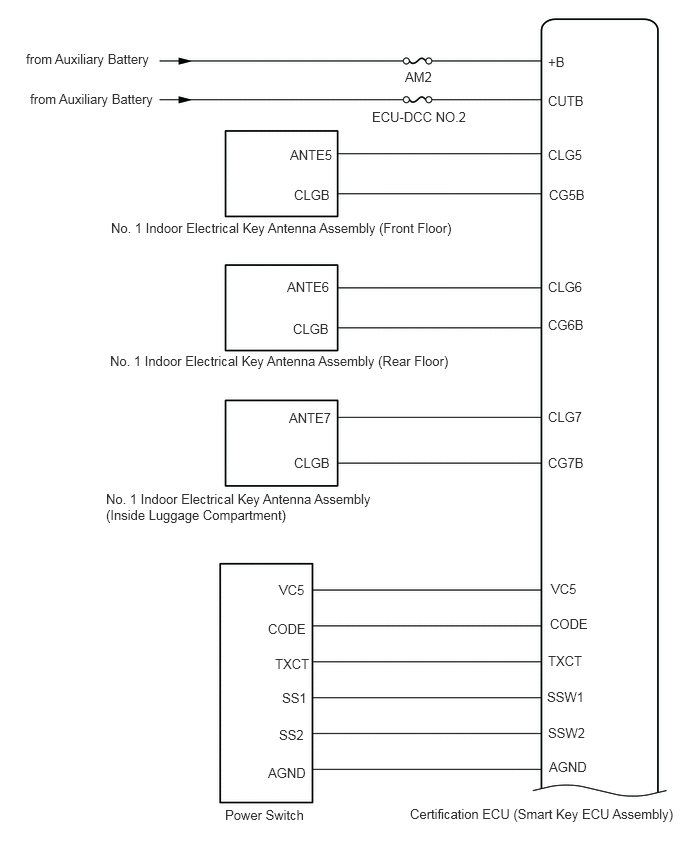

Fig 3: Smart Key System Diagram (For Start Function) (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

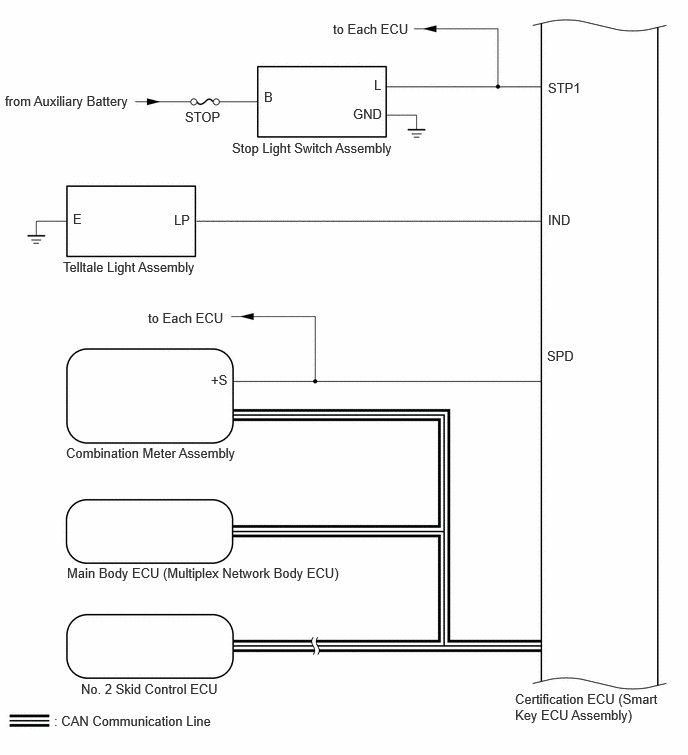

Fig 4: Smart Key System Diagram (For Start Function) (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SMART KEY SYSTEM (for Entry Function)
Refer to SYSTEM DIAGRAM [02/2019 - 10/2023] , or refer to SYSTEM DIAGRAM [10/2023 - ]
