Toyota
>>
2021
>>
RAV4 LE, AWD
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Pre-Collision System - Diagnostic Codes
>>
Pre-Collision System
>>
DTC U023A-87: Lost Communication with Image Processing Module "A" Missing Message [10/2022 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC U023A-87: Lost Communication with Image Processing Module "A" Missing Message [10/2022 - ]: Wiring Diagram

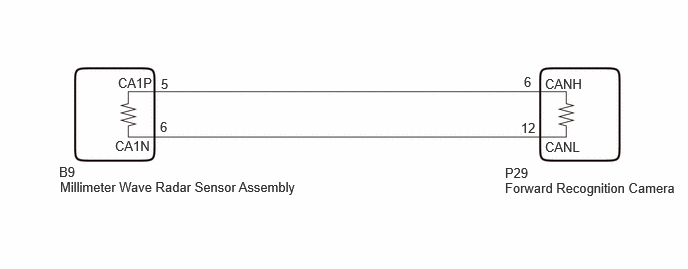

Fig 1: DTC U023A-87: Lost Communication With Image Processing Module "A" Missing Message [10/2022 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
