Removal [02/2019 - 10/2019]: Procedure

PRECAUTION

WARNING:

Be sure to read precaution thoroughly before servicing.

w/ Occupant Classification System: Refer to PRECAUTION [02/2019 - 08/2020]
w/o Occupant Classification System: Refer to PRECAUTION [11/2018 - 08/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

REMOVE DECK BOARD ASSEMBLY (for HV Model)
Refer to PROCEDURE - Step 2
REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)
Refer to PROCEDURE - Step 3
REMOVE BATTERY HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 4

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for A25A-FKS: Refer to PROCEDURE - Step 2
for A25A-FXS: Refer to PROCEDURE - Step 5

WARNING:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

If the airbag deploys for any reason, it may cause a serious accident.

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to PRECAUTION [11/2018 - ]

REMOVE HORN BUTTON ASSEMBLY
Refer to REMOVAL [02/2019 - 10/2019]

REMOVE STEERING PAD SWITCH ASSEMBLY

Disconnect the connectors from the spiral cable sub-assembly.

Remove the 2 screws.

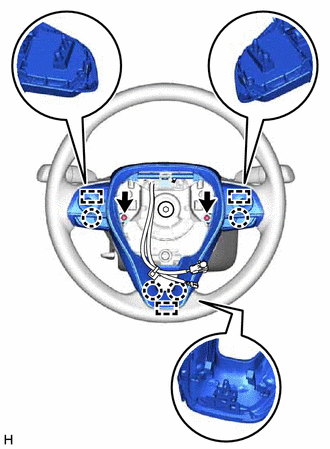

Detach the 3 guide pins and 4 claws to remove the steering pad switch assembly.
