Components [11/2018 - 10/2019]

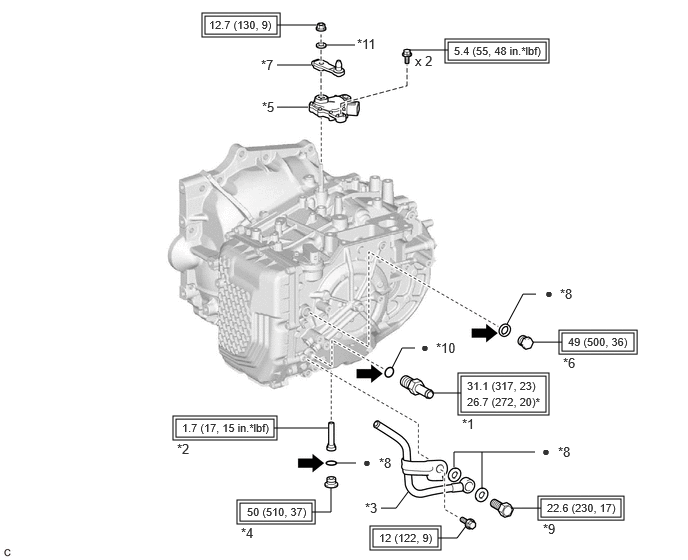

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications [11/2018 - 10/2019] (1 Of 12)
| Callout | Description | Callout | Description |
| *1 | NO. 1 OIL COOLER OUTLET TUBE SUB-ASSEMBLY | *2 | NO. 1 TRANSMISSION OIL FILLER TUBE |
| *3 | OIL COOLER UNION SUB-ASSEMBLY | *4 | OVERFLOW PLUG |
| *5 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *6 | REFILL PLUG |
| *7 | TRANSMISSION CONTROL SHAFT LEVER | *8 | GASKET |
| *9 | OIL COOLER UNION BOLT | *10 | O-RING |
| *11 | WASHER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench | |
| • | Non-reusable part | Toyota Genuine ATF WS |

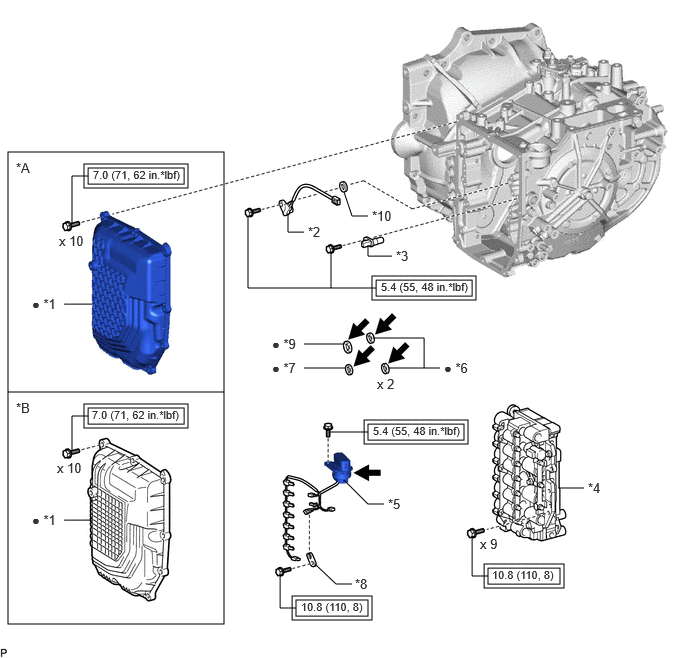

Fig 2: Automatic Transaxle Unit Replacement Components With Torque Specifications [11/2018 - 10/2019] (2 Of 12)
| Callout | Description | Callout | Description |
| *A | for AW (AISIN AW) Made | *B | for AWNC (AISIN AW) Made |
| *1 | TRANSMISSION CASE SIDE COVER | *2 | TRANSMISSION REVOLUTION SENSOR (NC) |
| *3 | TRANSMISSION REVOLUTION SENSOR (NT) | *4 | TRANSMISSION VALVE BODY ASSEMBLY |
| *5 | TRANSMISSION WIRE | *6 | TRANSAXLE CASE GASKET |
| *7 | NO. 1 FRONT OIL PUMP COVER GASKET | *8 | TEMPERATURE SENSOR CLAMP |
| *9 | NO. 2 FRONT OIL PUMP COVER GASKET | *10 | SPACER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |

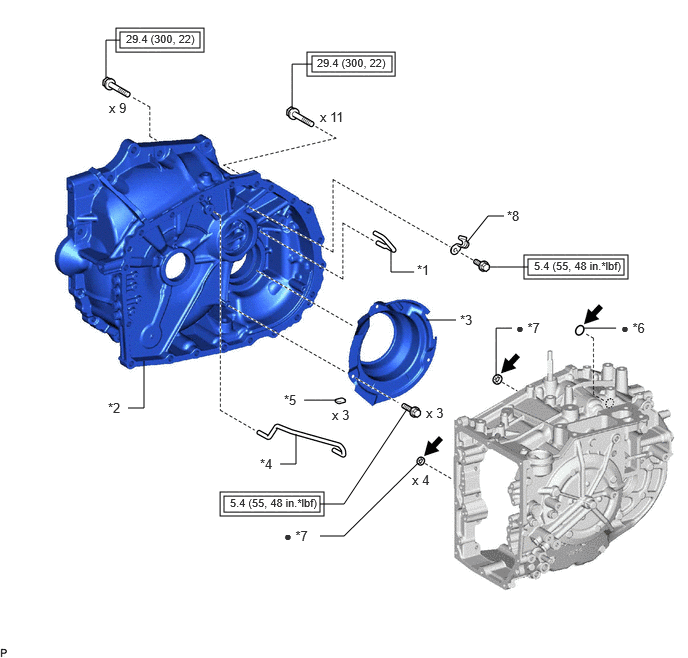

Fig 3: Automatic Transaxle Unit Replacement Components With Torque Specifications [11/2018 - 10/2019] (3 Of 12)
| Callout | Description | Callout | Description |
| *1 | DIFFERENTIAL GEAR LUBE APPLY TUBE | *2 | TRANSAXLE HOUSING |
| *3 | TRANSAXLE HOUSING OIL SEPARATOR | *4 | TRANSMISSION LUBE APPLY TUBE |
| *5 | TRANSMISSION OIL CLEANER MAGNET | *6 | O-RING |
| *7 | TRANSAXLE CASE GASKET | *8 | CLAMP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |

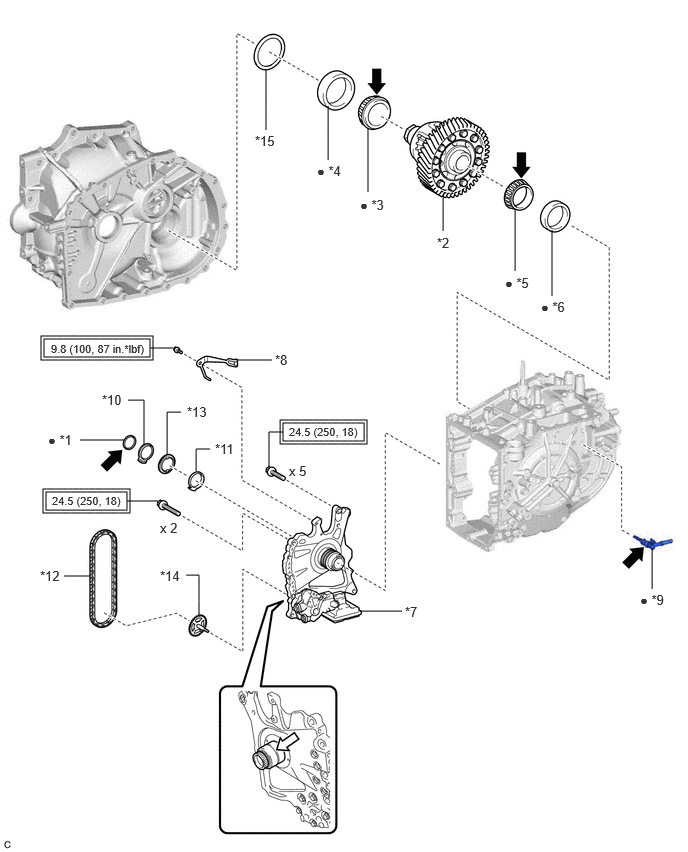

Fig 4: Automatic Transaxle Unit Replacement Components With Torque Specifications [11/2018 - 10/2019] (4 Of 12)
| Callout | Description | Callout | Description |
| *1 | CLUTCH DRUM OIL SEAL RING | *2 | DIFFERENTIAL CASE ASSEMBLY |
| *3 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE) | *4 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE) |
| *5 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE) | *6 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE) |
| *7 | FRONT OIL PUMP ASSEMBLY | *8 | MANUAL DETENT SPRING SUB-ASSEMBLY |
| *9 | NO. 1 BREATHER PLUG (ATM) | *10 | OIL PUMP SPROCKET FRONT THRUST WASHER |
| *11 | OIL PUMP SPROCKET REAR THRUST WASHER | *12 | TRANSMISSION DRIVE CHAIN |
| *13 | TRANSMISSION OIL PUMP DRIVE SPROCKET | *14 | OIL PUMP DRIVE SHAFT SUB-ASSEMBLY |
| *15 | DIFFERENTIAL DRIVE PINION SHIM | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | MP grease |

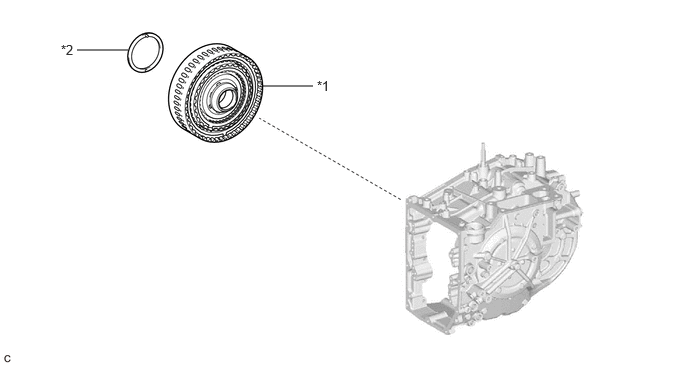

| *1 | C-3 AND C-4 CLUTCH ASSEMBLY | *2 | PLANETARY CARRIER THRUST WASHER |

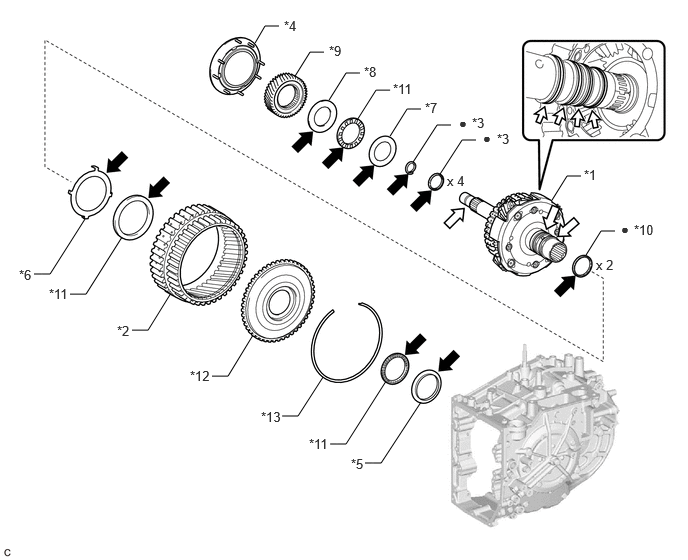

| *1 | FRONT PLANETARY GEAR ASSEMBLY | *2 | FRONT PLANETARY RING GEAR |
| *3 | INPUT SHAFT OIL SEAL RING | *4 | NO. 2 PLANETARY CARRIER THRUST WASHER |
| *5 | NO. 6 THRUST BEARING RACE | *6 | NO. 7 THRUST BEARING RACE |
| *7 | NO. 8 THRUST BEARING RACE | *8 | NO. 9 THRUST BEARING RACE |
| *9 | PLANETARY SUN GEAR | *10 | REAR INPUT SHAFT OIL SEAL RING |
| *11 | THRUST NEEDLE ROLLER BEARING | *12 | FRONT PLANETARY RING GEAR FLANGE |
| *13 | SNAP RING | - | - |
| • | Non-reusable part | Toyota Genuine ATF WS | |
| MP grease | - | - |

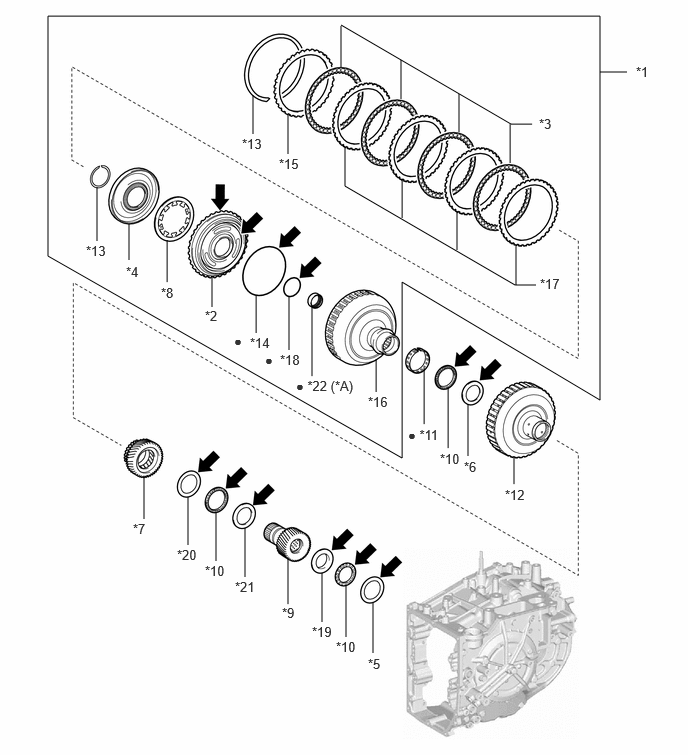

| *A | for AWNC Made | - | - |
| *1 | C-1 CLUTCH ASSEMBLY | *2 | FORWARD CLUTCH PISTON |
| *3 | FRONT CLUTCH DISC | *4 | NO. 1 CLUTCH BALANCER |
| *5 | NO. 2 THRUST BEARING RACE | *6 | NO. 5 THRUST BEARING RACE |
| *7 | PLANETARY SUN GEAR SUB-ASSEMBLY | *8 | REAR CLUTCH PISTON RETURN COMPRESSION SPRING |
| *9 | REAR PLANETARY SUN GEAR SUB-ASSEMBLY | *10 | THRUST NEEDLE ROLLER BEARING |
| *11 | TOLERANCE RING | *12 | SUN GEAR INPUT HUB SUB-ASSEMBLY |
| *13 | SNAP RING | *14 | O-RING |
| *15 | FORWARD CLUTCH FLANGE | *16 | CLUTCH DRUM SUB-ASSEMBLY |
| *17 | FORWARD MULTIPLE DISC CLUTCH PLATE | *18 | D-RING |
| *19 | NO. 3 THRUST BEARING RACE | *20 | NO. 4 THRUST BEARING RACE |
| *21 | THRUST BEARING RACE | *22 | NEEDLE ROLLER BEARING |
| • | Non-reusable part | Toyota Genuine ATF WS |

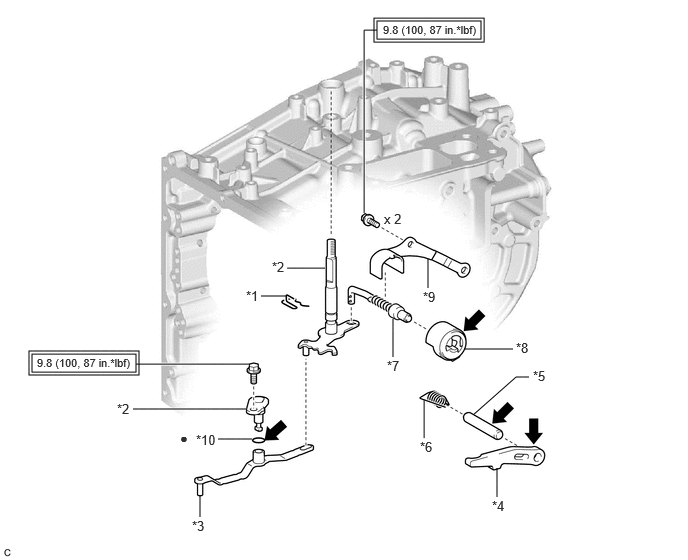

Fig 8: Automatic Transaxle Unit Replacement Components With Torque Specifications [11/2018 - 10/2019] (8 Of 12)
| Callout | Description | Callout | Description |
| *1 | MANUAL VALVE LEVER SHAFT RETAINER SPRING | *2 | MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY |
| *3 | MANUAL VALVE LEVER SUB-ASSEMBLY | *4 | PARKING LOCK PAWL |
| *5 | PARKING LOCK PAWL SHAFT | *6 | PARKING LOCK PAWL TORSION SPRING |
| *7 | PARKING LOCK ROD SUB-ASSEMBLY | *8 | PARKING LOCK SLEEVE |
| *9 | PAWL STOPPER PLATE | *10 | O-RING |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |

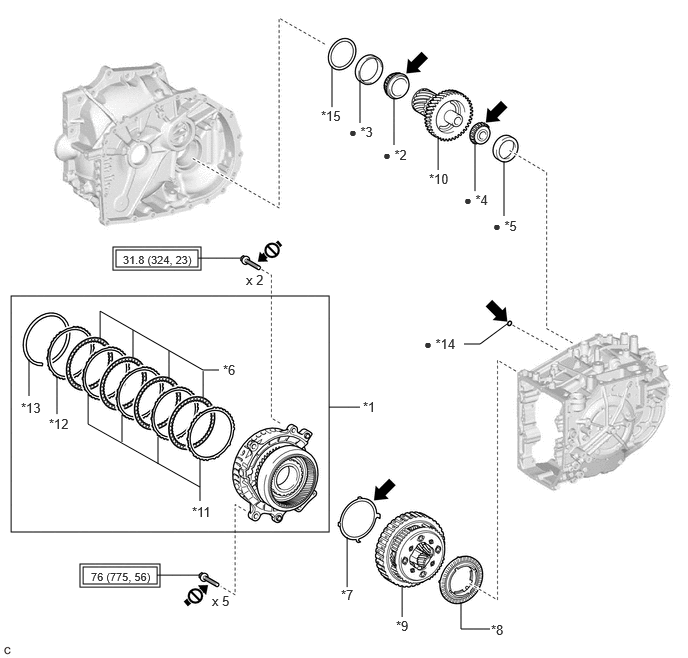

Fig 9: Automatic Transaxle Unit Replacement Components With Torque Specifications [11/2018 - 10/2019] (9 Of 12)
| Callout | Description | Callout | Description |
| *1 | COUNTER DRIVE GEAR SUB-ASSEMBLY | *2 | COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (INNER RACE) |
| *3 | COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (OUTER RACE) | *4 | COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (INNER RACE) |
| *5 | COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (OUTER RACE) | *6 | NO. 1 BRAKE DISC |
| *7 | NO. 3 PLANETARY CARRIER THRUST WASHER | *8 | NO. 4 PLANETARY CARRIER THRUST WASHER |
| *9 | REAR PLANETARY GEAR ASSEMBLY | *10 | PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY |
| *11 | NO. 1 BRAKE PLATE | *12 | NO. 1 BRAKE FLANGE |
| *13 | SNAP RING | *14 | O-RING |
| *15 | PINION AND COUNTER DRIVEN GEAR SHIM | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | Do not apply lubricants to the threaded parts |

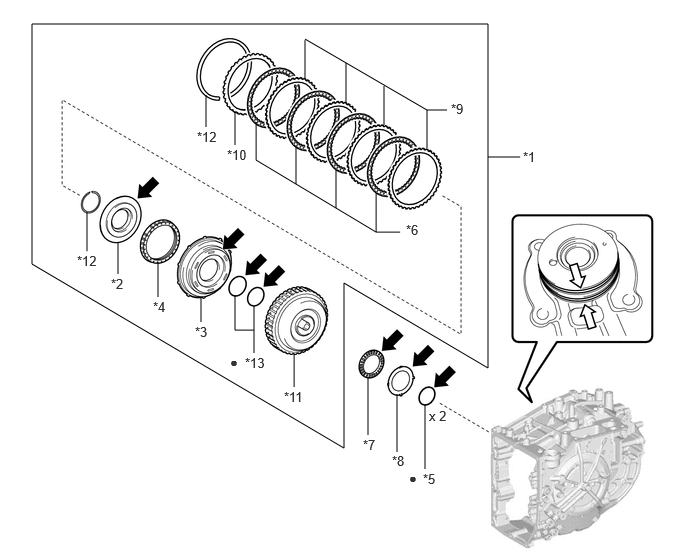

| *1 | C-2 CLUTCH ASSEMBLY | *2 | C-2 CLUTCH BALANCER |
| *3 | C-2 CLUTCH PISTON | *4 | CLUTCH RETURN SPRING SUB-ASSEMBLY |
| *5 | DIRECT CLUTCH DRUM OIL SEAL RING | *6 | NO. 2 CLUTCH DISC |
| *7 | THRUST NEEDLE ROLLER BEARING | *8 | NO. 1 THRUST BEARING RACE |
| *9 | NO. 2 CLUTCH PLATE | *10 | DIRECT CLUTCH FLANGE |
| *11 | INTERMEDIATE SHAFT SUB-ASSEMBLY | *12 | SNAP RING |
| *13 | O-RING | - | - |
| • | Non-reusable part | Toyota Genuine ATF WS | |
| MP grease | - | - |

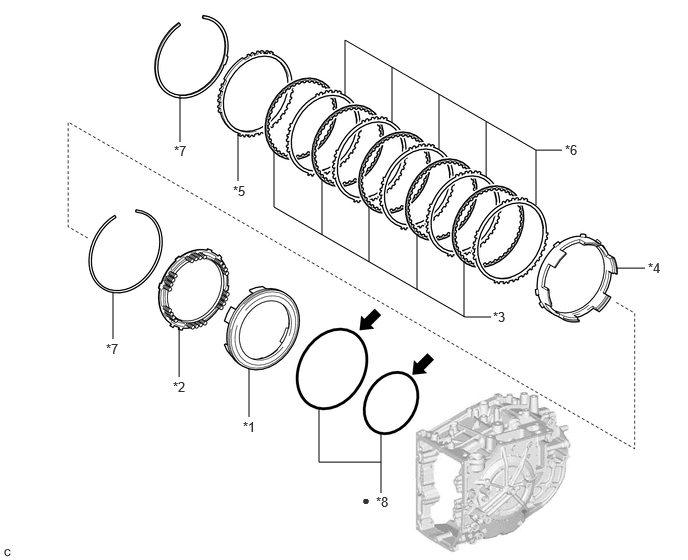

| *1 | 1ST AND REVERSE BRAKE PISTON | *2 | 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY |
| *3 | 2ND BRAKE DISC | *4 | NO. 2 1ST AND REVERSE BRAKE PISTON |
| *5 | 2ND BRAKE FLANGE | *6 | 2ND BRAKE PLATE |
| *7 | SNAP RING | *8 | O-RING |
| • | Non-reusable part | Toyota Genuine ATF WS |

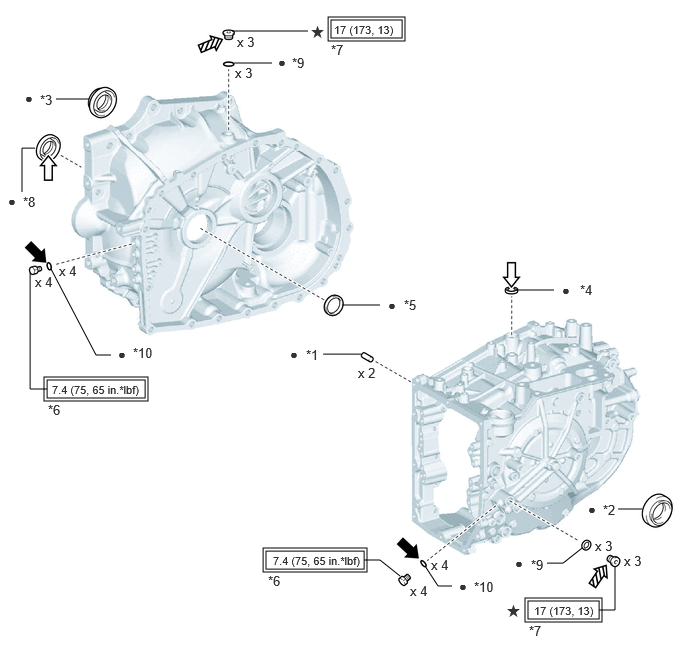

Fig 12: Automatic Transaxle Unit Replacement Components With Torque Specifications [11/2018 - 10/2019] (12 Of 12)
| Callout | Description | Callout | Description |
| *1 | AUTOMATIC TRANSMISSION CASE STRAIGHT PIN | *2 | FRONT DRIVE SHAFT OIL SEAL LH |
| *3 | FRONT DRIVE SHAFT OIL SEAL RH | *4 | MANUAL VALVE LEVER SHAFT OIL SEAL |
| *5 | NEEDLE ROLLER BEARING | *6 | NO. 1 TRANSAXLE CASE PLUG |
| *7 | NO. 2 TRANSAXLE CASE PLUG | *8 | TRANSAXLE CASE OIL SEAL |
| *9 | GASKET | *10 | O-RING |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | MP grease | ||
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | * | Precoated part |
