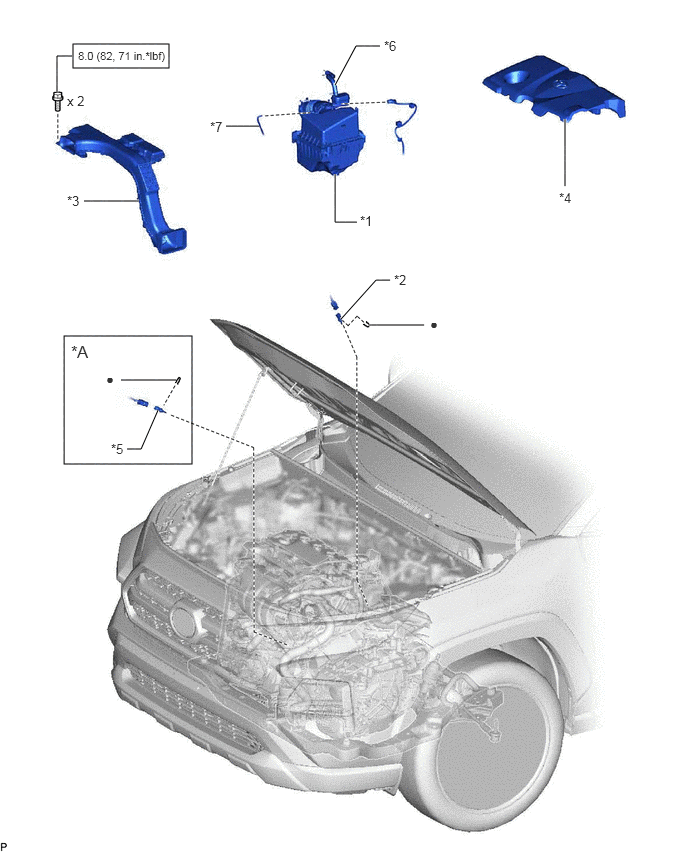

Components [11/2018 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Grille Shutter | - | - |
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | ENGINE COOLANT TEMPERATURE SENSOR |
| *3 | INLET AIR CLEANER ASSEMBLY | *4 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *5 | NO. 2 ENGINE COOLANT TEMPERATURE SENSOR | *6 | NO. 2 PCV HOSE |
| *7 | VACUUM HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
