Components [10/2019 - ]

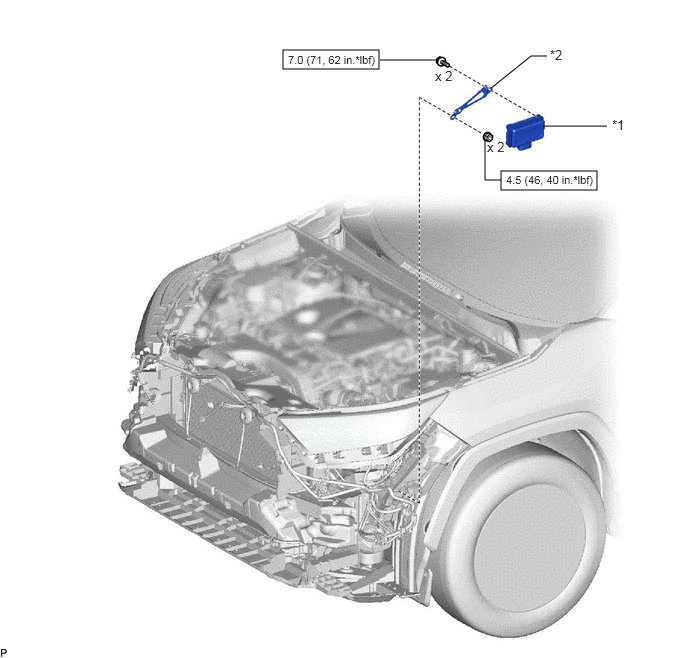

Fig 1: Backup Boost Converter Replacement Components With Torque Specifications
GTY910192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECO-RUN VEHICLE CONVERTER ASSEMBLY *2 NO. 1 CONVERTER CONTROL BRACKET
N.m (kgf/cm, ft.lbf): Specified torque - -
