System Diagram [10/2022 - 10/2023]

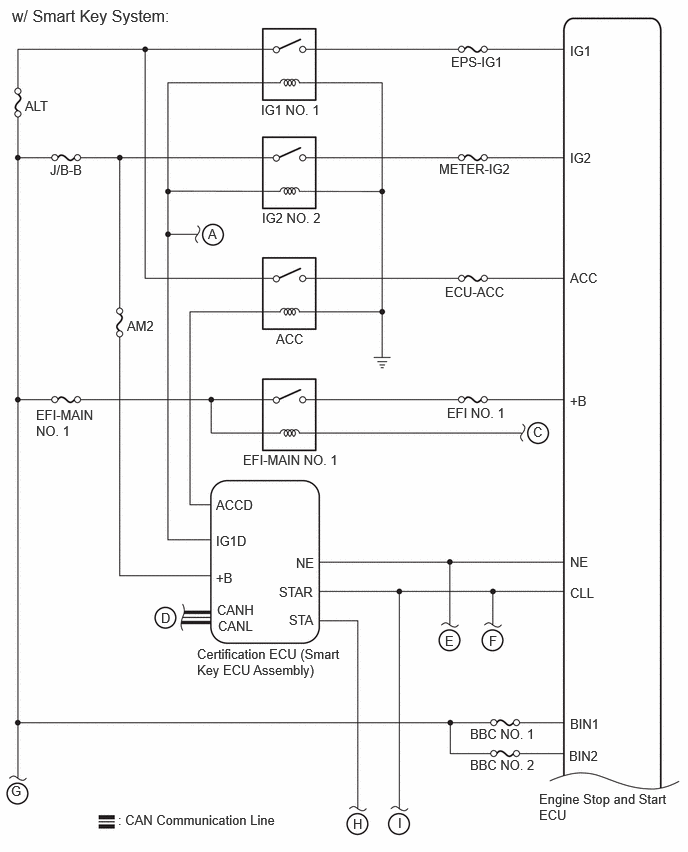

Fig 1: Stop And Start System Diagram (1 Of 7)

GTY1176855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

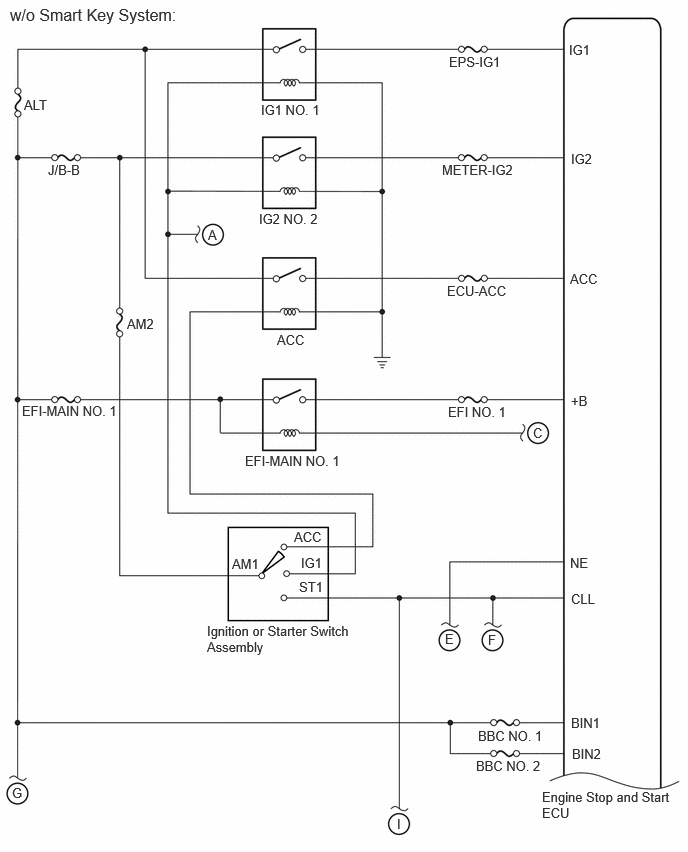

Fig 2: Stop And Start System Diagram (2 Of 7)

GTY1177494

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

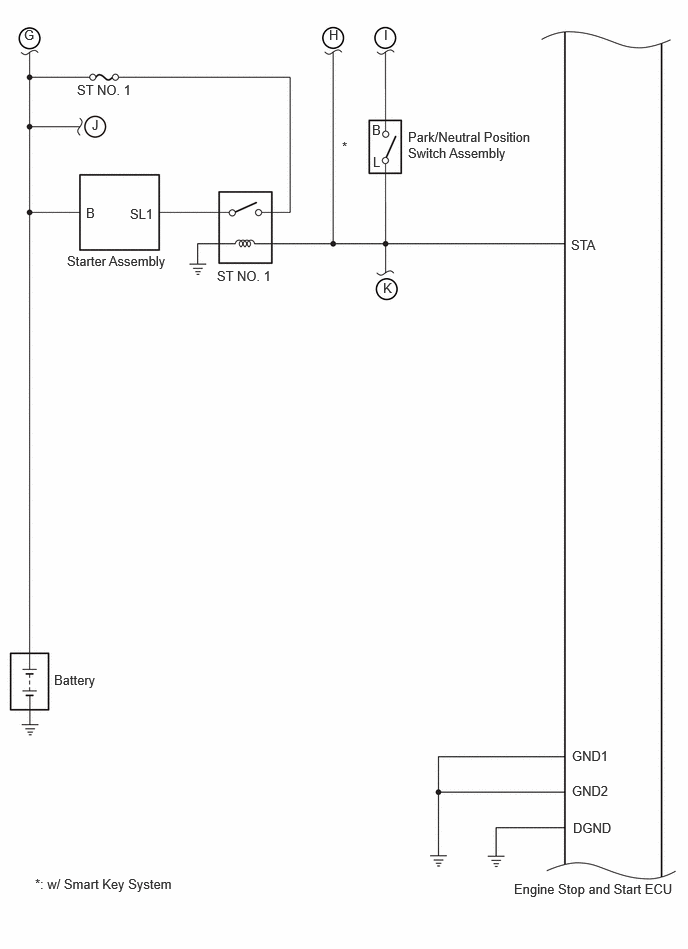

Fig 3: Stop And Start System Diagram (3 Of 7)

GTY1176822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Stop And Start System Diagram (4 Of 7)

GTY864522

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

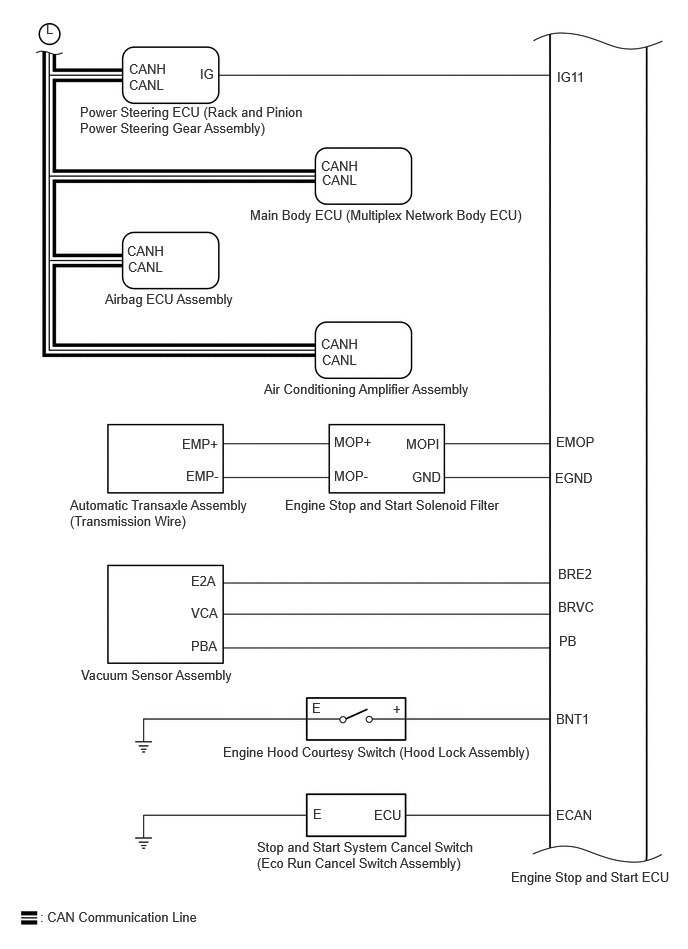

Fig 5: Stop And Start System Diagram (5 Of 7)

GTY1103864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

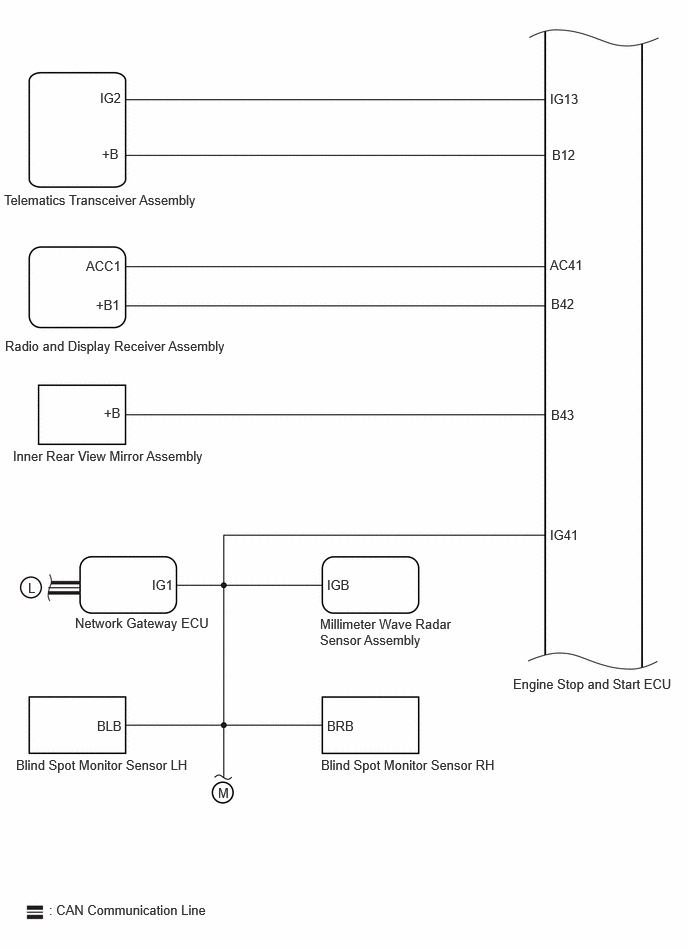

Fig 6: Stop And Start System Diagram (6 Of 7)

GTY1105687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

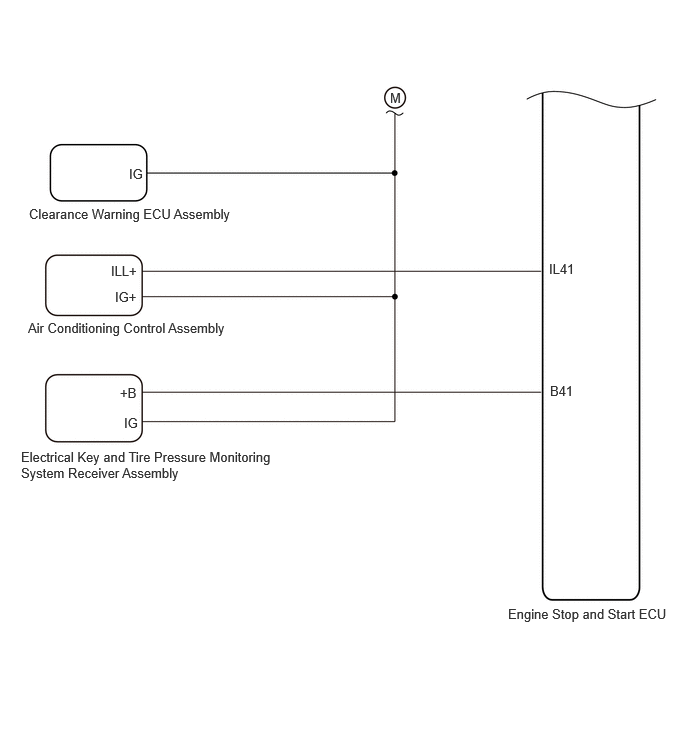

Fig 7: Stop And Start System Diagram (7 Of 7)

GTY1104014

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
