Section 7 (Engine Control System (A25A-FXS) (W/O Canister Pump Module) - Diagnostics - Introduction)
>>
SFI SYSTEM (w/o Canister Pump Module)
>>
System Diagram [11/2018 - 08/2020]
>>
System Diagram [11/2018 - 08/2020]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

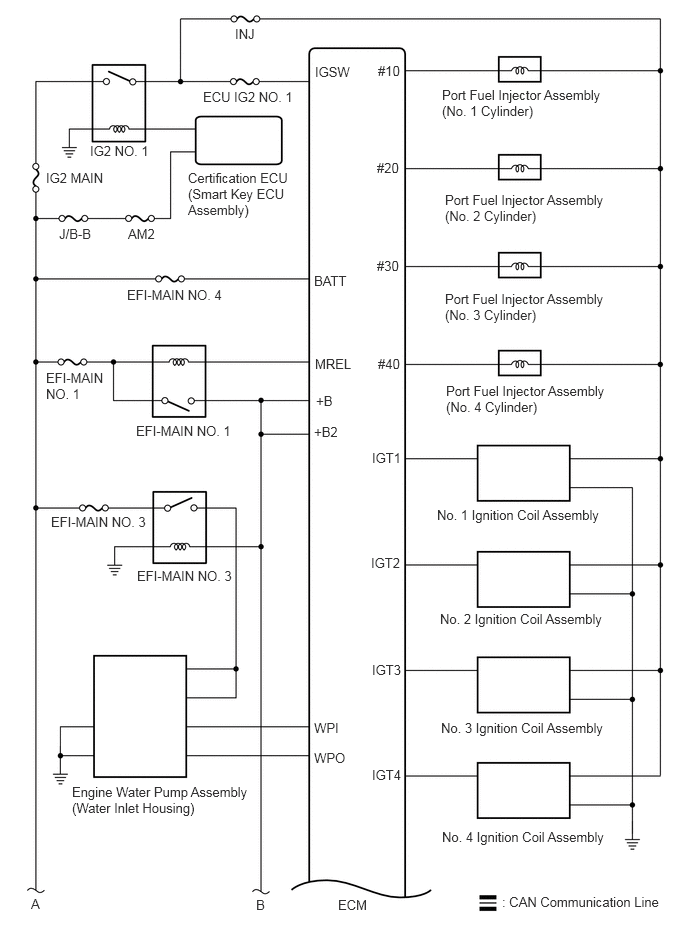

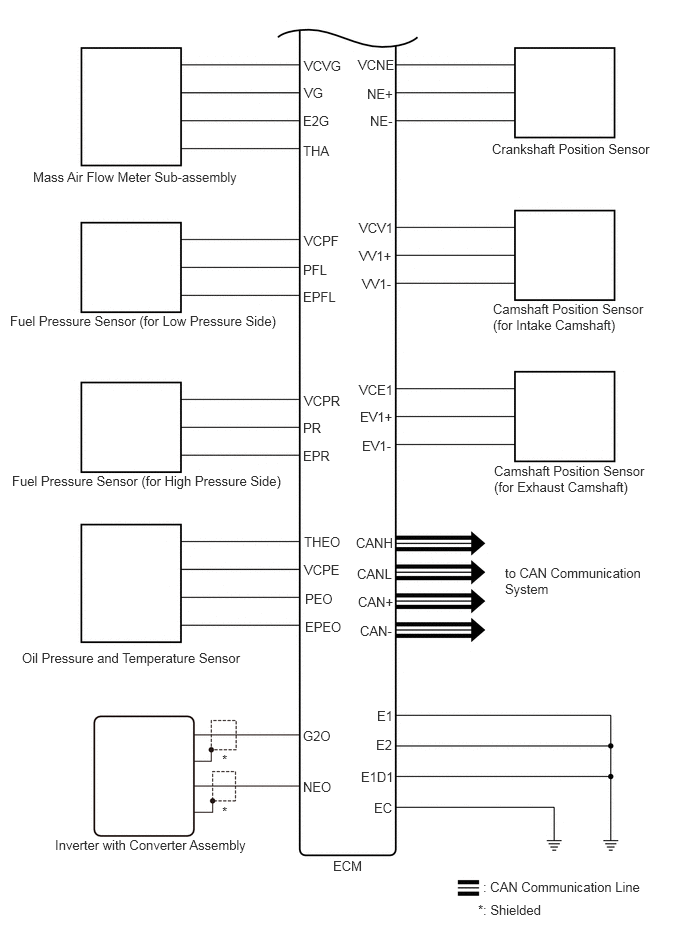

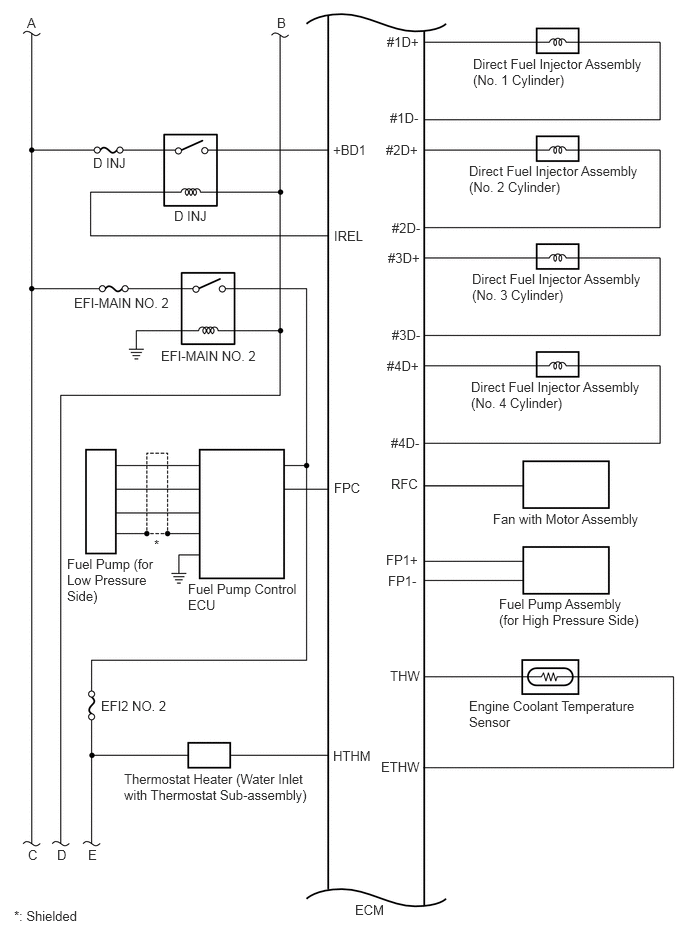

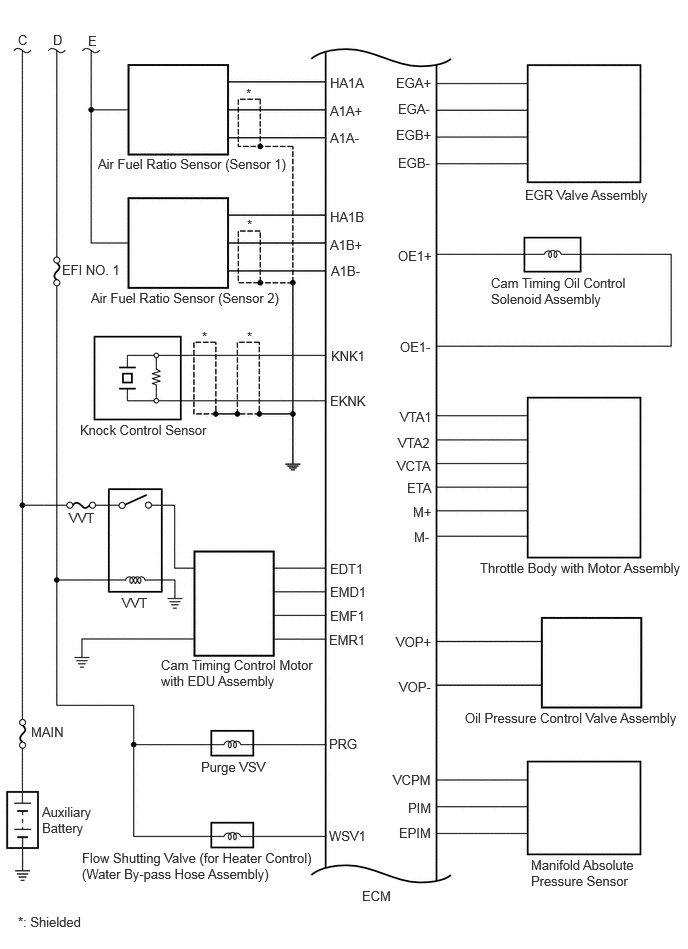

System Diagram [11/2018 - 08/2020]
