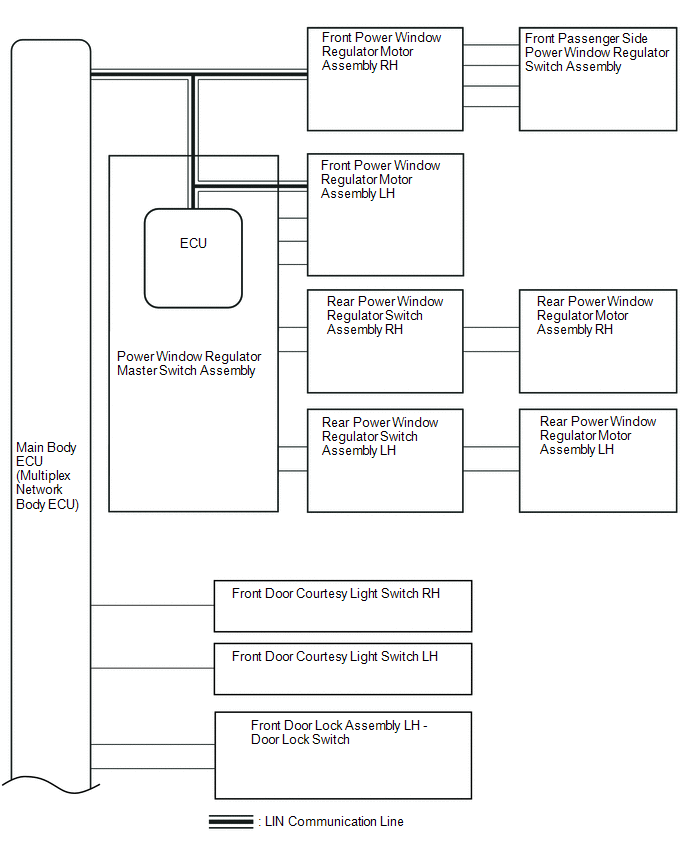

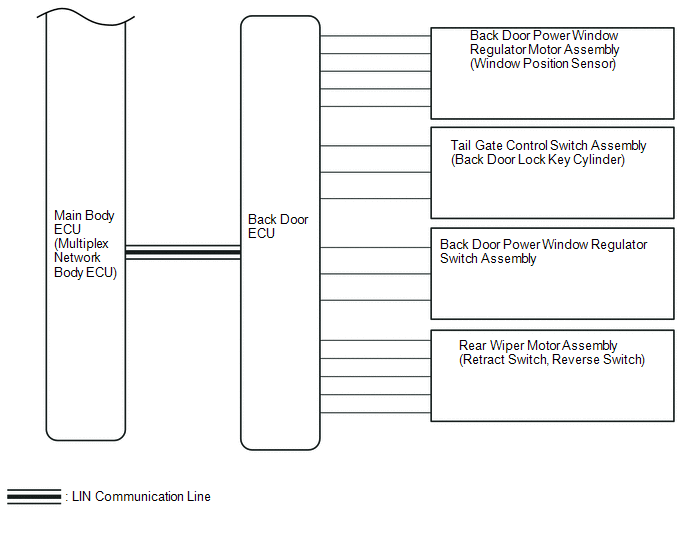

System Diagram [08/2017 - 08/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Sender	Receiver	Line	Signal
Power window regulator master switch assembly	Front power window regulator motor assembly LH Front power window regulator motor assembly RH	LIN	Power window UP/DOWN signal
Main Body ECU (multiplex network body ECU)	Power window regulator master switch assembly Front power window regulator motor assembly LH Front power window regulator motor assembly RH	LIN	Key-linked power window UP/DOWN signal Key-OFF operation permission signal
Main Body ECU (multiplex network body ECU)	Back door ECU	LIN	Key-OFF operation permission signal
Back door ECU	Main Body ECU (multiplex network body ECU)	LIN	Status of the power window position
