Unable to Unlock Steering Wheel (Engine cannot Start) [08/2019 - ]: Procedure

  1. CHECK POWER SOURCE MODE CHANGING FUNCTION (SWITCH CONDITION)
    1. Check the power source mode change.

      Refer to OPERATION CHECK [08/2019 - ]

      OK

      The power source mode changes to on (IG).

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    GO TO SMART KEY SYSTEM (for Start Function) (Power Source Mode does not Change to ON (IG and ACC)). Refer to  Power Source Mode does not Change to ON (IG and ACC) [08/2019 - ]

    Result:

    OK

    See step  2

  2. CHECK STEERING UNLOCK
    1. Turn the steering wheel left and right, and then press the engine switch.
    2. Check that the steering is unlocked.

      Result

      Result Proceed to
      The steering is unlocked. A
      The steering is not unlocked. B

    Result:

    A

    END (STEERING LOCK IS NORMAL)

    Result:

    B

    See step  3

  3. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Smart Key / Trouble Codes.
    5. Check for DTCs and note any DTCs that are output.

      Result

      Result Proceed to
      DTCs are not output. A
      DTCs are output. B

    Result:

    B

    GO TO DIAGNOSTIC PROCEDURE INDICATED BY OUTPUT DTC. Refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2019 - ]

    Result:

    A

    See step  4

  4. READ VALUE USING TECHSTREAM (UNLOCK REQUEST RECEIVE)
    1. Enter the following menus: Body Electrical / Smart Key / Data List.
    2. Read the Data List according to the display on the Techstream.
      SMART KEY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Unlock Request Receive Status of steering unlock command from certification ECU (smart key ECU assembly)/
      OK or NG      		 OK: Unlock request signal received within 10 seconds of engine switch being turned on (IG) or on (ACC) or of an engine start operation being performed
      NG: Engine switch not turned on (IG) or on (ACC) and engine start operation not being performed
      • The engine cannot be started when an unlock request signal cannot be received.
      • If OK is not displayed even though the steering unlock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.

      OK

      Within 10 seconds of turning the engine switch on (ACC) or on (IG) or starting the engine, the Data List item changes to "OK".

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  11

    Result:

    OK

    See step  5

  5. READ VALUE USING TECHSTREAM (L CODE CHECK)
    1. Enter the following menus: Body Electrical / Smart Key / Data List.
    2. Read the Data List according to the display on the Techstream.
      SMART KEY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      L Code Check Verification result between certification ECU (smart key ECU assembly) and steering lock ECU (upper steering column with switch bracket assembly)/
      OK or NG      		 OK: Verification result normal
      NG: Verification result abnormal      		 When NG is displayed:
      • The ID code for the certification ECU (smart key ECU assembly) or steering lock ECU (upper steering column with switch bracket assembly) is not registered, or the certification ECU (smart key ECU assembly) or steering lock ECU (upper steering column with switch bracket assembly) is malfunctioning.
      • The steering cannot be locked.
      • The steering cannot be unlocked (the engine cannot be started).

      OK

      OK is displayed on the Techstream.

      HINT:

      Reasons for verification failure:

      • The steering lock ECU (upper steering column with switch bracket assembly) or certification ECU (smart key ECU assembly) is malfunctioning.
      • There is a problem with the communication between ECUs.
      • An ECU is replaced, but is not registered.
      • An ECU is replaced with an ECU which has a code already stored in it.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  10

    Result:

    OK

    See step  6

  6. CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY) - POWER SUPPLY AND BODY GROUND)
    1. Disconnect the steering lock ECU (upper steering column with switch bracket assembly) connector.
      GTY931087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Steering Lock ECU (Upper Steering Column with Switch Bracket Assembly))
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H196-1 (GND) - Body ground Always Below 1 Ω
      NOTE:

      If the result is not as specified, check for looseness in the ground cable connection.

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      H196-7 (B) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CHECK STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY) (MOTOR ACTIVATION COMMAND SIGNAL)
    1. Reconnect the steering lock ECU (upper steering column with switch bracket assembly) connector.
    2. Using an oscilloscope, check the waveform.

      OK

      Tester Connection Tool Setting Condition Specified Condition
      H196-3 (IGE) - H196-1 (GND) 2 V/DIV., 200 ms./DIV. Any door opened when following conditions are met, and then steering lock motor activated:
      • Shift state park (P)
      • Steering lock unlocked in advance by carrying key and turning engine switch on (IG)
      • After above conditions are met, engine switch turned off
      		 Pulse generation
      (See waveform)

      HINT:

      • When taking measurements when the lock motor is stopped, it is not necessary to perform any operations.
      • In order to take measurements when the lock motor is operating, perform either of the following operations:
        • To unlock the steering, carry the key and turn the engine switch on (ACC) or on (IG).
        • To lock the steering, turn the engine switch off with the shift state park (P), and then open a door.
      GTY858103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Steering Lock ECU (Upper Steering Column with Switch Bracket Assembly))
      *b Steering Lock Motor not Operating
      *c Steering Lock Motor Operating
      *d Waveform

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY)

    for Power Tilt and Power Telescopic Steering Column:

    Refer to DISASSEMBLY [08/2019 - ]

    for Manual Tilt and Manual Telescopic Steering Column:

    Refer to DISASSEMBLY [08/2019 - ]

    Result:

    NG

    See step  8

  8. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY))
    1. Disconnect the H196 steering lock ECU (upper steering column with switch bracket assembly) connector.
    2. Disconnect the H199 certification ECU (smart key ECU assembly) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H196-3 (IGE) - H199-24 (SLR+) Always Below 1 Ω
      H196-3 (IGE) or H199-24 (SLR+) - Other terminals and body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  9

  9. CHECK STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY)
    1. Reconnect the steering lock ECU (upper steering column with switch bracket assembly) connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      H196-3 (IGE) - Body ground Always 11 to 14 V

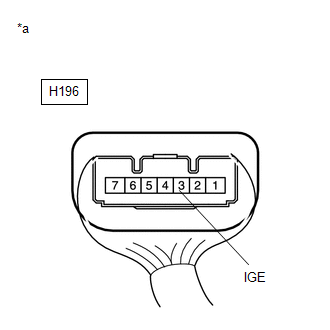

      GTY894329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Steering Lock ECU (Upper Steering Column with Switch Bracket Assembly))

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [08/2019 - ]

    Result:

    NG

    REPLACE STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY)

    for Power Tilt and Power Telescopic Steering Column:

    Refer to DISASSEMBLY [08/2019 - ]

    for Manual Tilt and Manual Telescopic Steering Column:

    Refer to DISASSEMBLY [08/2019 - ]

  10. CHECK STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY)
    1. Replace the steering lock ECU (upper steering column with switch bracket assembly) with a new one and perform registration again.

      for Power Tilt and Power Telescopic Steering Column:

      Refer to DISASSEMBLY [08/2019 - ]

      for Manual Tilt and Manual Telescopic Steering Column:

      Refer to DISASSEMBLY [08/2019 - ]

      HINT:

      Refer to Registration.

      Refer to REGISTRATION [08/2019 - ]

    2. Enter the following menus: Body Electrical / Smart Key / Data List.
    3. Read the Data List according to the display on the Techstream.
      SMART KEY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      L Code Check Verification result between certification ECU (smart key ECU assembly) and steering lock ECU (upper steering column with switch bracket assembly)/
      OK or NG      		 OK: Verification result normal
      NG: Verification result abnormal      		 When NG is displayed:
      • The ID code for the certification ECU (smart key ECU assembly) or steering lock ECU (upper steering column with switch bracket assembly) is not registered, or the certification ECU (smart key ECU assembly) or steering lock ECU (upper steering column with switch bracket assembly) is malfunctioning.
      • The steering cannot be locked.
      • The steering cannot be unlocked (the engine cannot be started).

      OK

      OK is displayed on the Techstream.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY) WAS DEFECTIVE)

    Result:

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [08/2019 - ]

  11. CHECK STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY)
    1. Measure the voltage according to the value(s) in the table below.

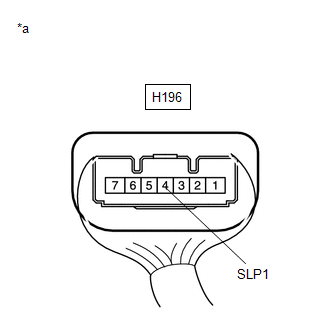

      GTY940030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Steering Lock ECU (Upper Steering Column with Switch Bracket Assembly))

      Standard Voltage

      Tester Connection Condition Specified Condition
      H196-4 (SLP1) - Body ground Always 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  14

    Result:

    OK

    See step  12

  12. READ VALUE USING TECHSTREAM (STEERING UNLOCK)
    1. Check that the steering is locked.
    2. Enter the following menus: Body Electrical / Smart Key / Data List.
    3. Read the Data List according to the display on the Techstream.
      SMART KEY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Steering Unlock Steering lock ECU (upper steering column with switch bracket assembly) unlock confirmation status/
      Unset or Set      		 Unset: Unlock not confirmed
      Set: Unlock confirmed      		 When Unset is displayed, the steering is not unlocked (the engine cannot be started).

      OK

      Set is displayed on the Techstream.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY)

    for Power Tilt and Power Telescopic Steering Column:

    Refer to DISASSEMBLY [08/2019 - ]

    for Manual Tilt and Manual Telescopic Steering Column:

    Refer to DISASSEMBLY [08/2019 - ]

    Result:

    OK

    See step  13

  13. READ VALUE USING TECHSTREAM (UNLOCK REQUEST RECEIVE)
    1. Replace the certification ECU (smart key ECU assembly) with a new one.

      Refer to REMOVAL [08/2019 - ]

    2. Perform registration.

      HINT:

      Refer to Registration.

      Refer to REGISTRATION [08/2019 - ]

    3. Enter the following menus: Body Electrical / Smart Key / Data List.
    4. Read the Data List according to the display on the Techstream.
      SMART KEY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Unlock Request Receive Status of steering unlock command from certification ECU (smart key ECU assembly)/
      OK or NG      		 OK: Unlock request signal received within 10 seconds of engine switch being turned on (IG) or on (ACC) or of an engine start operation being performed
      NG: Engine switch not turned on (IG) or on (ACC) and engine start operation not being performed
      • The engine cannot be started when an unlock request signal cannot be received.
      • If OK is not displayed even though the steering unlock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.

      OK

      Within 10 seconds of turning the engine switch on (ACC) or on (IG) or starting the engine, the Data List item changes to "OK".

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

    Result:

    NG

    REPLACE STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY)

    for Power Tilt and Power Telescopic Steering Column:

    Refer to DISASSEMBLY [08/2019 - ]

    for Manual Tilt and Manual Telescopic Steering Column:

    Refer to DISASSEMBLY [08/2019 - ]

  14. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY))
    1. Disconnect the H196 steering lock ECU (upper steering column with switch bracket assembly) connector.
    2. Disconnect the H199 certification ECU (smart key ECU assembly) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H196-4 (SLP1) - H199-23 (SLP) Always Below 1 Ω
      H196-4 (SLP1) or H199-23 (SLP) - Other terminals and body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  15

  15. READ VALUE USING TECHSTREAM (UNLOCK REQUEST RECEIVE)
    1. Replace the steering lock ECU (upper steering column with switch bracket assembly) with a new one.

      for Power Tilt and Power Telescopic Steering Column:

      Refer to DISASSEMBLY [08/2019 - ]

      for Manual Tilt and Manual Telescopic Steering Column:

      Refer to DISASSEMBLY [08/2019 - ]

    2. Perform registration.

      HINT:

      Refer to Registration.

      Refer to REGISTRATION [08/2019 - ]

    3. Enter the following menus: Body Electrical / Smart Key / Data List.
    4. Read the Data List according to the display on the Techstream.
      SMART KEY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Unlock Request Receive Status of steering unlock command from certification ECU (smart key ECU assembly)/
      OK or NG      		 OK: Unlock request signal received within 10 seconds of engine switch being turned on (IG) or on (ACC) or of an engine start operation being performed
      NG: Engine switch not turned on (IG) or on (ACC) and engine start operation not being performed
      • The engine cannot be started when an unlock request signal cannot be received.
      • If OK is not displayed even though the steering unlock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.

      OK

      Within 10 seconds of turning the engine switch on (ACC) or on (IG) or starting the engine, the Data List item changes to "OK".

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (STEERING LOCK ECU (UPPER STEERING COLUMN WITH SWITCH BRACKET ASSEMBLY) WAS DEFECTIVE)

    Result:

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [08/2019 - ]

scientia non olet · About LEMON Manuals
