Audio Receiver Assembly Communication Stop Mode [08/2017 - 08/2019]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the radio and display receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

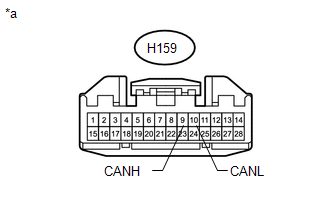

   *a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H159-9 (CANH) - H159-10 (CANL)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

Result:

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

Result:

OK

See step  2

1. Disconnect the radio and display receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

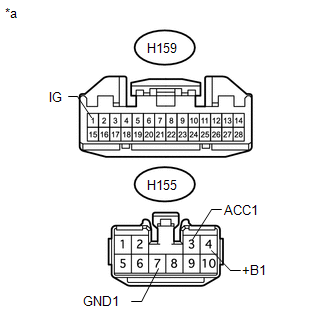

   *a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H155-7 (GND1) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

3. Reconnect the cable to the negative (-) battery terminal.
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Refer to INITIALIZATION [08/2017 - 08/2018] , or refer to INITIALIZATION [08/2018 - 08/2019]

4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   H155-4 (+B1) - Body ground	Always	11 to 14 V
   H155-3 (ACC1) - Body ground	Ignition switch ACC	11 to 14 V
   	Ignition switch off	Below 1 V
   H159-1 (IG) - Body ground	Ignition switch ON	11 to 14 V
   	Ignition switch off	Below 1 V

Result:

OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY. Refer to  REMOVAL [08/2015 - 08/2019]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
