DTC C1AA7: Skid Control Buzzer Circuit [08/2017 - 08/2019]: Procedure

  1. CHECK FOR DTCs (FORWARD RECOGNITION CAMERA SYSTEM)
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [08/2017 - 08/2019]

    2. Perform the Active Test according to the display on the Techstream.

      Refer to DATA LIST / ACTIVE TEST [08/2017 - 08/2019]

      NOTE:

      Perform the Active Test for 1 second or more.

      HINT:

      Performing the Active Test for 1 second or more causes DTC C1AA7 to be stored if the DTC detection conditions are met.

      Tester Display Measurement Item Control Range Diagnostic Note
      PCS Buzzer Skid control buzzer ON / OFF Test possible with ignition switch ON, vehicle stopped
    3. Check for DTCs.

      Refer to DTC CHECK / CLEAR [08/2017 - 08/2019]

      Result

      Result Proceed to
      DTC C1AA7 is not output A
      DTC C1AA7 is output B

    Result:

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2017 - 08/2018]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2018 - 08/2019]

    Result:

    See step  2

  2. CHECK TERMINAL VOLTAGE
    1. Disconnect the Skid control buzzer connector.

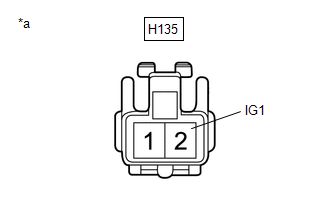

      GTY749642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Skid Control Buzzer)
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      H135-2 (IG1) - Body ground Ignition switch ON 11 to 14 V
      Ignition switch off Below 1 V
    3. Connect the Skid control buzzer connector.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (SKID CONTROL BUZZER - BATTERY)

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (SKID CONTROL BUZZER - FORWARD RECOGNITION CAMERA)
    1. Disconnect the H135 skid control buzzer connector.
    2. Disconnect the U22 forward recognition camera connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H135-1 (BZ) - U22-8 (BZ) Always Below 1 Ω
      H135-1 (BZ) or U22-8 (BZ) - Body ground Always 10 kΩ or higher
    4. Connect the U22 forward recognition camera connector.
    5. Connect the H135 skid control buzzer connector.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    See step  6

    Result:

    NG

    See step  4

  4. REPAIR OR REPLACE HARNESS OR CONNECTOR (SKID CONTROL BUZZER - FORWARD RECOGNITION CAMERA)
    1. Repair or replace the harness or connector.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  5

  5. CHECK FOR DTCs (FORWARD RECOGNITION CAMERA SYSTEM)
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [08/2017 - 08/2019]

    2. Perform the Active Test according to the display on the Techstream.

      Refer to DATA LIST / ACTIVE TEST [08/2017 - 08/2019]

      NOTE:

      Perform the Active Test for 1 second or more.

      HINT:

      Performing the Active Test for 1 second or more causes DTC C1AA7 to be stored if the DTC detection conditions are met.

      Tester Display Measurement Item Control Range Diagnostic Note
      PCS Buzzer Skid control buzzer ON / OFF Test possible with ignition switch ON, vehicle stopped
    3. Check for DTCs.

      Refer to DTC CHECK / CLEAR [08/2017 - 08/2019]

      Result

      Result Proceed to
      DTC C1AA7 is not output A
      DTC C1AA7 is output B

    Result:

    END

    Result:

    See step  6

  6. INSPECT SKID CONTROL BUZZER (CONFIRM BUZZER OPERATION)
    1. Turn the ignition switch to ON.
    2. Check if the skid control buzzer is sounding.

      Result

      Result Proceed to
      The skid control buzzer does not sound when the ignition switch is turned to ON A
      The skid control buzzer sounds continuously when the ignition switch is turned to ON B

    Result:

    See step  8

    Result:

    See step  7

  7. INSPECT SKID CONTROL BUZZER (UNIT INSPECTION)
    1. Remove the skid control buzzer.

      Refer to REMOVAL [08/2017 - ]

    2. Inspect the skid control buzzer.

      Refer to INSPECTION [08/2017 - ]

      Result

      Result Proceed to
      Skid control buzzer is abnormal A
      Skid control buzzer is normal B

    Result:

    See step  9

    Result:

    See step  8

  8. REPLACE SKID CONTROL BUZZER
    1. Replace the skid control buzzer.

      Refer to REMOVAL [08/2017 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  9

  9. CHECK FOR DTCs (FORWARD RECOGNITION CAMERA SYSTEM)
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [08/2017 - 08/2019]

    2. Perform the Active Test according to the display on the Techstream.

      Refer to DATA LIST / ACTIVE TEST [08/2017 - 08/2019]

      NOTE:

      Perform the Active Test for 1 second or more.

      HINT:

      Performing the Active Test for 1 second or more causes DTC C1AA7 to be stored if the DTC detection conditions are met.

      Tester Display Measurement Item Control Range Diagnostic Note
      PCS Buzzer Skid control buzzer ON / OFF Test possible with ignition switch ON, vehicle stopped
    3. Check for DTCs.

      Refer to DTC CHECK / CLEAR [08/2017 - 08/2019]

      Result

      Result Proceed to
      DTC C1AA7 is not output A
      DTC C1AA7 is output B

    Result:

    END

    Result:

    REPLACE FORWARD RECOGNITION CAMERA. Refer to  REMOVAL [08/2017 - ]
