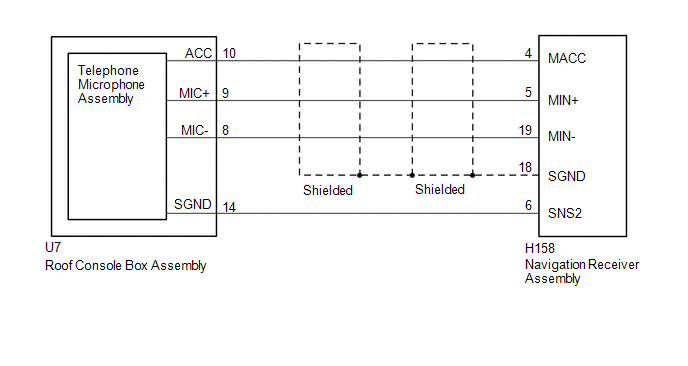

Microphone Circuit between Microphone and Navigation Receiver Assembly [08/2017 - 08/2019]: Wiring Diagram

GTY771091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
