Mute Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier [08/2017 - 08/2019]: Procedure
- CHECK STEREO COMPONENT AMPLIFIER ASSEMBLY
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition H162-1 (MUTE) - Body ground Ignition switch ACC, audio system playing
→ Changing modesApproximately 3.5 V

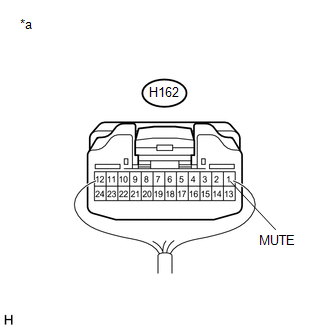

→ Below 1 VTEXT IN ILLUSTRATION*a Component with harness connected
(Stereo Component Amplifier Assembly)
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
(Refer to PROBLEM SYMPTOMS TABLE [08/2017 - 08/2019] )
Result:
NG
See step 2
- Measure the voltage according to the value(s) in the table below.
- CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - STEREO COMPONENT AMPLIFIER ASSEMBLY)
- Disconnect the H158 navigation receiver assembly connector.
- Disconnect the H162 stereo component amplifier assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition H158-16 (MUT1) - H162-1 (MUTE) Always Below 1 Ω H158-16 (MUT1) - Body ground Always 10 kΩ or higher
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- CHECK STEREO COMPONENT AMPLIFIER ASSEMBLY (OUTPUT SIGNAL)
- Disconnect the navigation receiver assembly connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

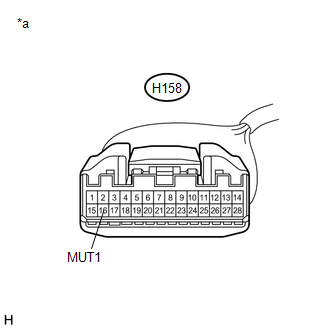

Tester Connection Switch Condition Specified Condition H158-16 (MUT1) - Body ground Ignition switch ACC, audio system is playing Approximately 3.5 V TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Navigation Receiver Assembly)
Result:
OK
REPLACE NAVIGATION RECEIVER ASSEMBLY
(Refer to REMOVAL [08/2015 - 08/2019] )
Result:
NG
REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY
(Refer to REMOVAL [08/2017 - 08/2019] )
