Radio Receiver Power Source Circuit [08/2019 - ]: Procedure

1. Disconnect the radio and display receiver assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

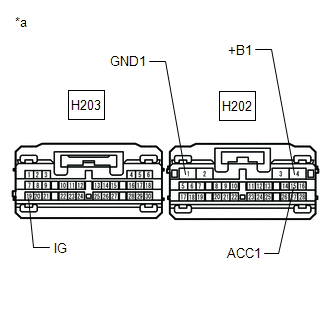

   *a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   H202-4 (+B1) - H202-1 (GND1)	Always	11 to 14 V
   H202-15 (ACC1) - H202-1 (GND1)	Engine switch on (ACC)	11 to 14 V
   H203-19 (IG) - H202-1 (GND1)	Engine switch on (IG)	11 to 14 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H202-1 (GND1) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [08/2019 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
