Stereo Component Amplifier Power Source Circuit [08/2017 - 08/2019]: Procedure

1. Disconnect the stereo component amplifier assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H145-2 (GND) - Body ground	Always	Below 1 Ω
   H145-6 (GND2) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   H145-1 (+B) - H145-2 (GND)	Always	11 to 14 V
   H145-3 (+B2) - H145-2 (GND)	Always	11 to 14 V
   H162-12 (ACC) - H145-2 (GND)	Ignition switch ACC	11 to 14 V

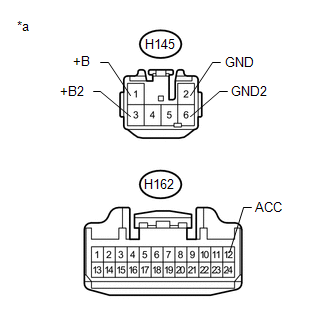

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Stereo Component Amplifier Assembly)

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [08/2017 - 08/2019] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
